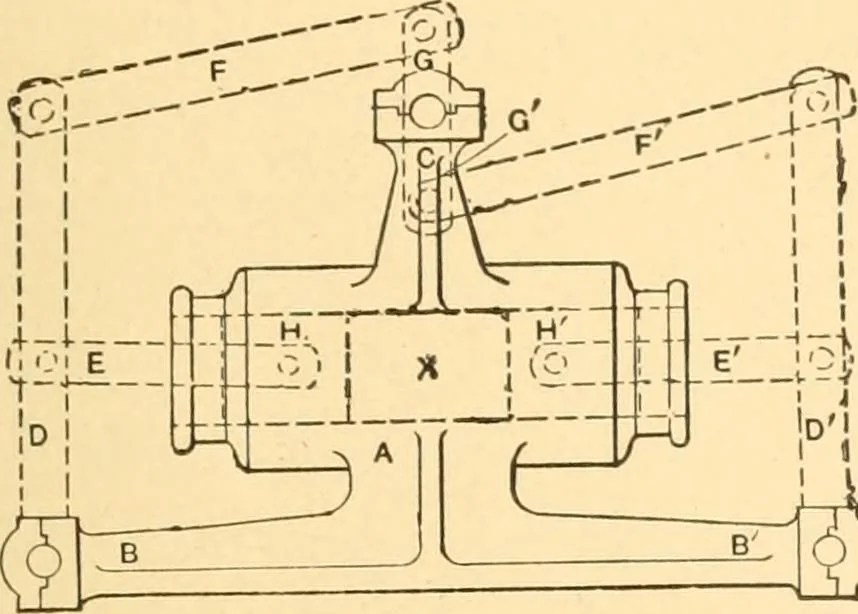

, the air cock for starting at 19. The other parts are self-explained. EXPLOSIVE MOTOR POWER AND APPLIANCES. 117 27chart 2. BALANCED ENGINE. Explosive motor. Secor type. The^e is fired in the chamber X between the two pistons H H, whose motion is transmitted to the cranksG G, having equal throw and… … 273. GASOLINE ATOMIZER AND VAPORIZER. Hay type. The exhaust is used forheating the walls of the va-porizing chamber by trav-ersing the annular cham-ber e. A fan, //, is revolvedon the spindle, y, by the in-rushing air and gasolinethrough the valve E, whichalso covers the gasoline in-lets on the…
