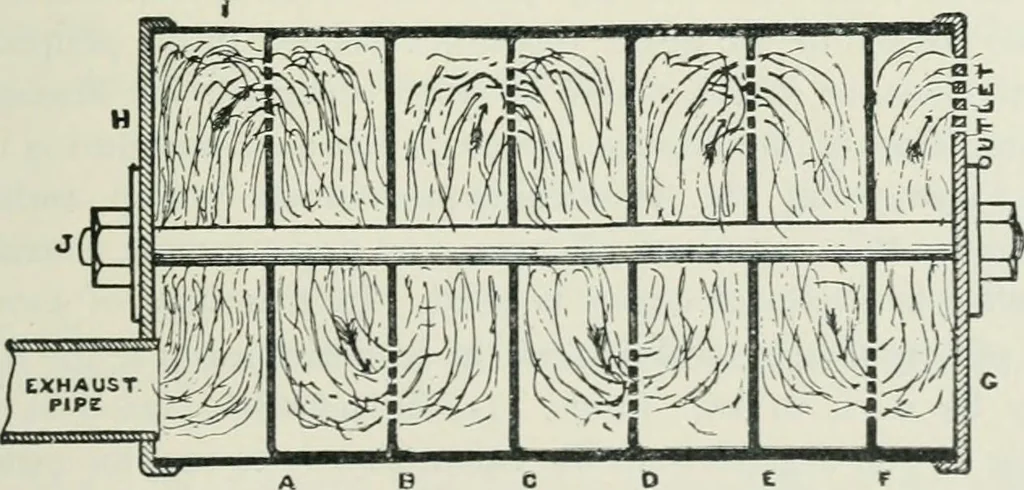

Fig. 19. - -Silencer and passing through a number of holes at the end of the pipeat F, expand in the chamber d. Passing from the chamber dthrough the holes at g, the gases enter the chamber e, wherea further expansion takes place. Finally the exhaust is ejected … Fi^. 20.—Silencer to tlie atmosphere through the holes at h. The constructionof the silencer can easily be followed from the illustration. Fig. 20 depicts the second type of silencer, which almostexplains itself, i is a cylmdrical steel body fixed to the end 132 MOTORS AND MOTOR-DRIVING plates G…
