Large spacecraft antennas - New geometric configuration design concepts (1971)

Oliver, R. E · leaf 4

An illustration from Large spacecraft antennas - New geometric configuration design concepts, 1971, leaf 4

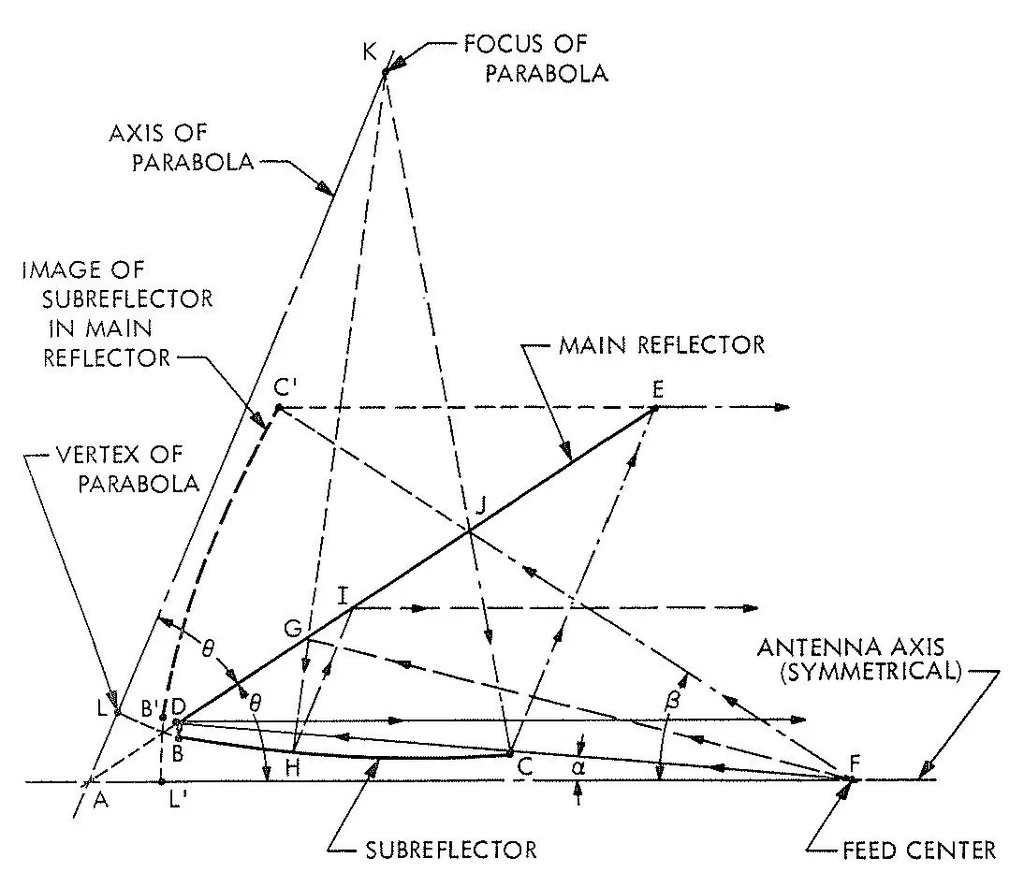

Figure 5. Multiple-reflection conical antenna REFLECTION OF MAIN SUBREFLECTOR vIN MAIN REFLECTOR - MAJOR AXIS OF PARABOLA ■ FOCUS OF PARABOLA MAIN REFLECTOR MAJOR AXIS OF ELLIPSE J y IK 1 _ .^ 1— 1 ANTENNA AXIS (SYMMETRICAL) AUXILIARY SUBREFLECTOR ■ Figure 6. Multiple-reflection conical antenna…
