LASER SOUNDING OF THE ATMOSPHERE (1973)

ZUYEV, V. Y · leaf 5

An illustration from LASER SOUNDING OF THE ATMOSPHERE, 1973, leaf 5

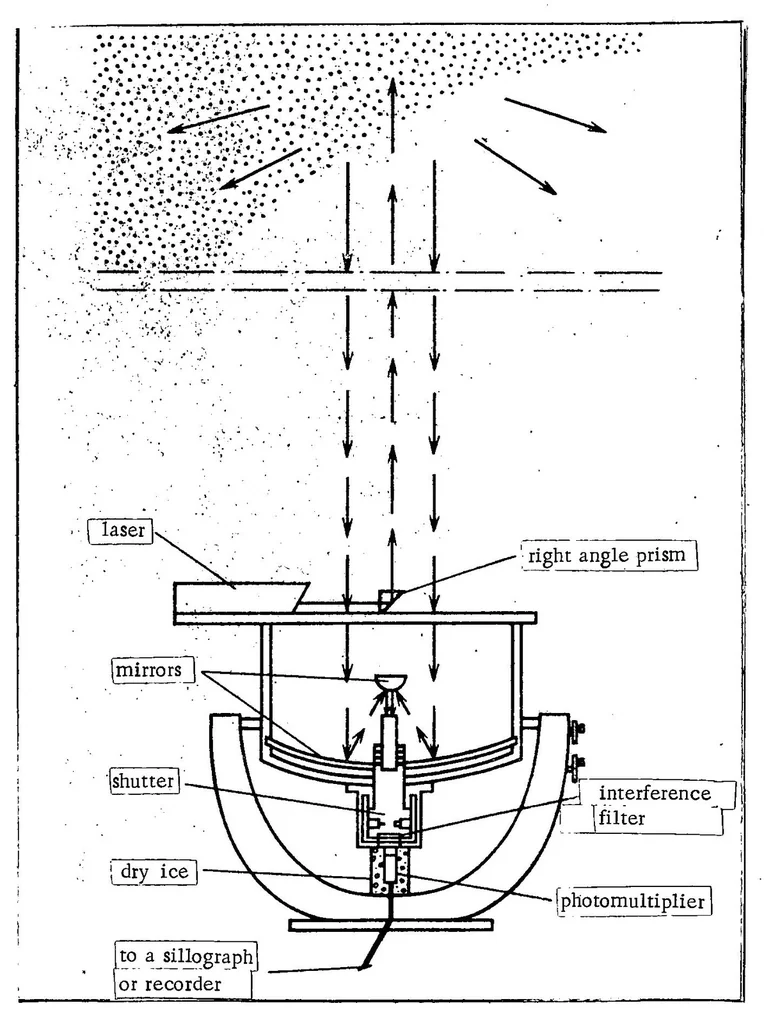

the atmosphere, stratification of aerosol layers, concentrations and spectra of the sizes of aerosol particles (of all types of clouds, including silver clouds, fogs, smokes, dust, hazes, etc.)- … Lidar - with Joint Location Figure 1. Diagram of a Laser Locator of both Source and Receiver. Information concerning atmospheric aerosols can be obtained on the basis /88 of measuring energy scatter of the laser pulse by particles. Recording the energy scattered-by air molecules enables one to…

Data acquisition · Ground truth · Meteorological parameters · Michigan · EREP · Skylab program · Weather

Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
