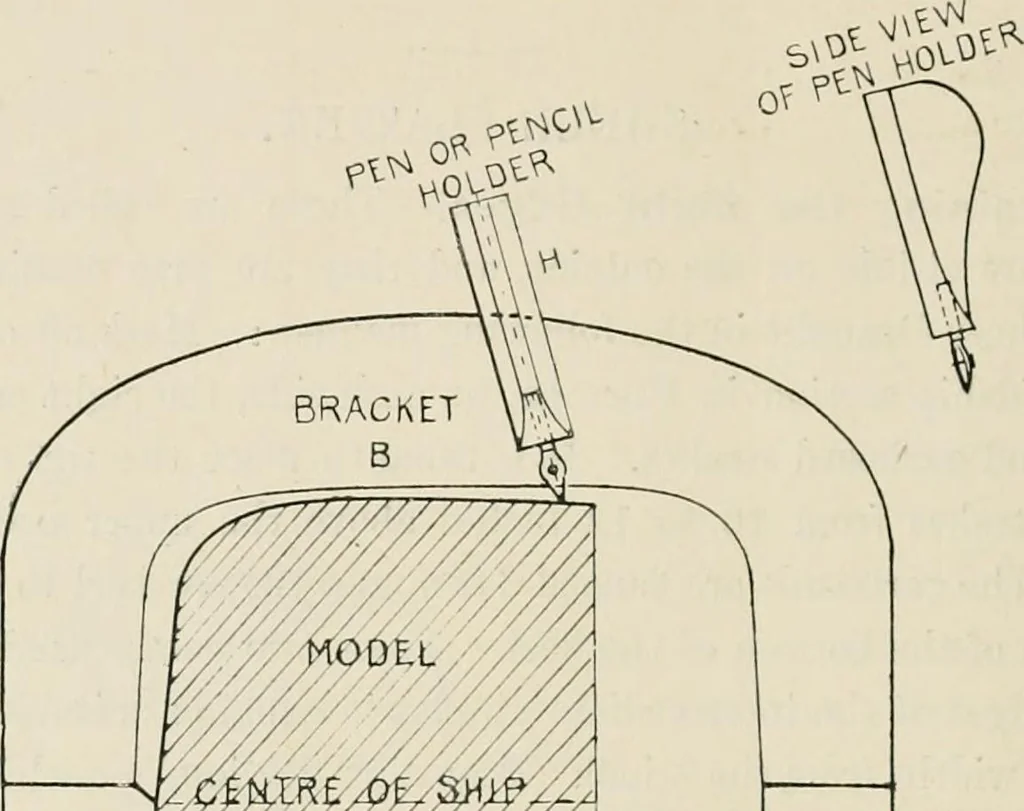

edges of ascrew steamer somewhat disposed on this plan. 46 NAVAL ARCHITECTURE. Lining Off the Model.—A half block model of the ship is madeon a scale of a quarter of an inch equal to 1 foot. The back is slightlybeyond the centre line as shown in Fig-. 41, for marking off on thekeel the frame… … K\\\\\\\\\\\\\\\\\\\V0*te i^w PLAN BRACKET MODEL The upper deck line should be set off on the midship frame, andthen run in fore and aft with a gauge parallel to the top line. If notparallel it is lined in with a batten attached with pins or eyelessoeedles. The model is laid upon a thick drawing…
