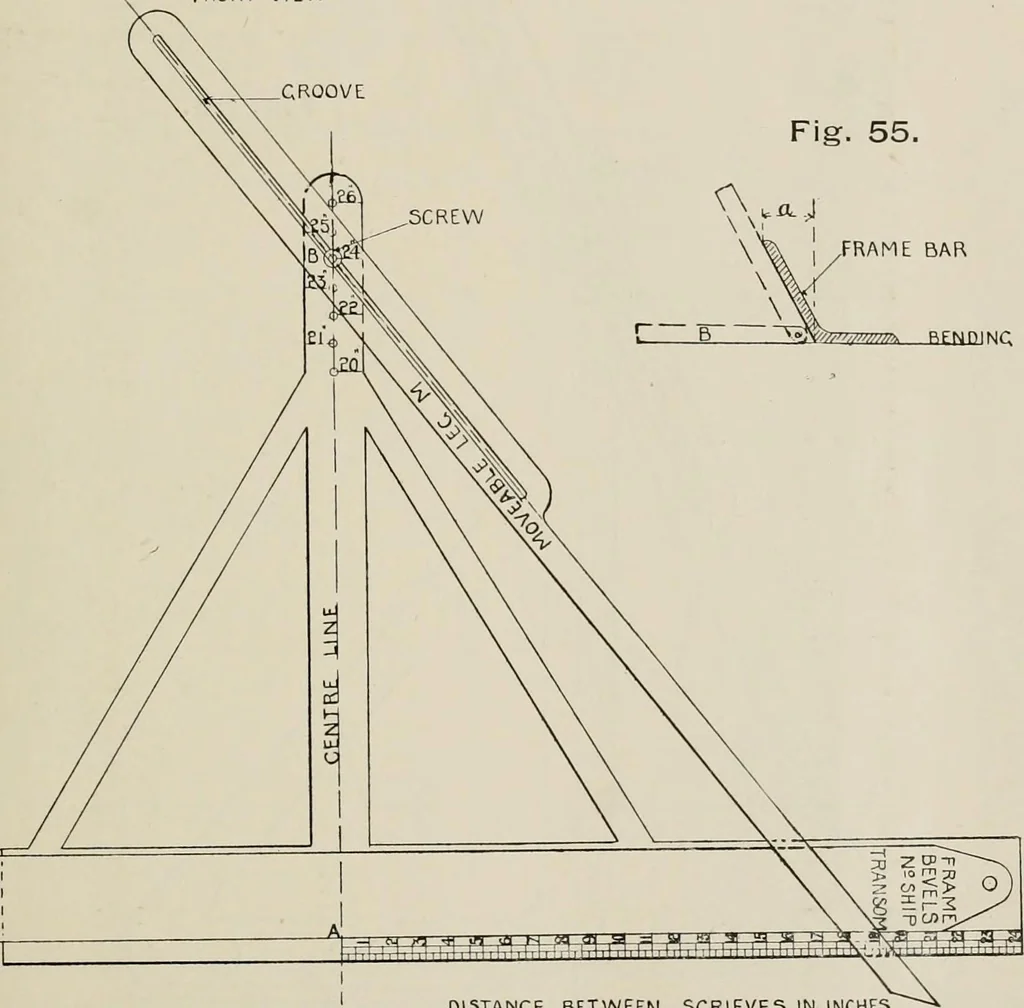

ed with bevels (given inFig. 53), when other boards are secured and filleduntil all the frames are lifted. SCRIEVE BOARD. 63 Applying the Bevels to the Frame Bars.—Lift the bevelfrom the board by an adjustable set square in the manner shown inthe Fig. 53, and apply it when bevelling square to the… … DISTANCE BETWEEN SCRIEVES IN INCHES Checking the Frame Bar Bevels on the Boards.—A lightiron skeleton machine (Fig. 56), sometimes called the detective, isused for this purpose. The frame bar is placed on the scrieve lineand the machine, fixed to the correct spacing of the frames, is made tostand…
