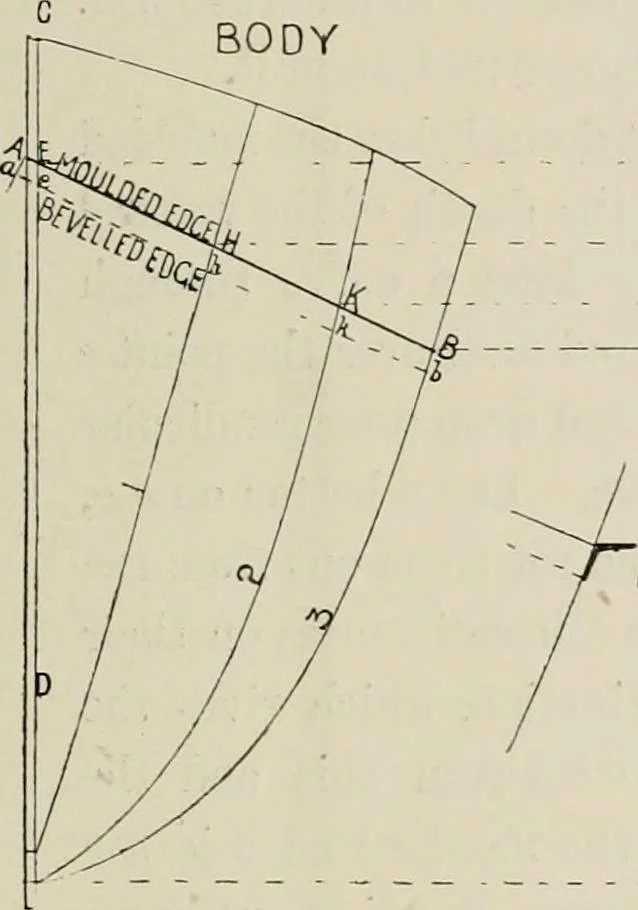

Inner Bottom Ribbands.—Ribbands are also fittedon the upper decks and inner bottom to keep the decks and bottom in- RIBBANDS AND HARPINS. 69 form until part of the plating is attached. Those for the tank sidesmay be lifted from the loft floor, but it is not usually done. It maybe noted here that… … SHEER Fig. 60. HARPIN BAR Fig. 61. ^ P-BEVEL ADJUSTABLE SET ifl DAD SQUARE-. L BAR PLATFORM -\-,^ Fig. 62.
