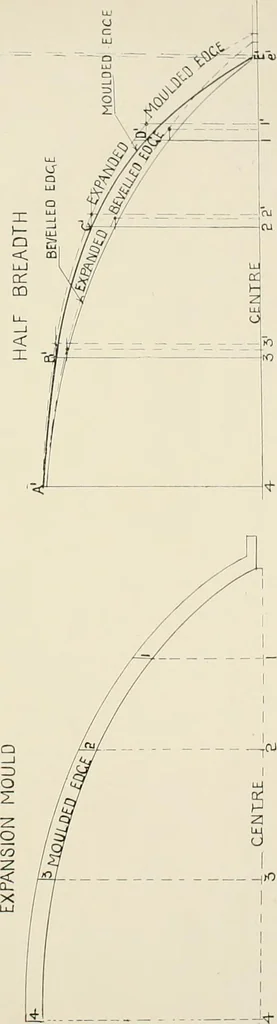

RIBBANDS AND HARPINS. 71 The True Form of the Moulded Edge.—Square down on to theHalf Breadth centre line the point E, where the harpin cuts the insideof the stem. Set on E1 E the half siding of the stem at E, whichgives the terminating point. Next girth from the point E, in theSheer, the positions…
