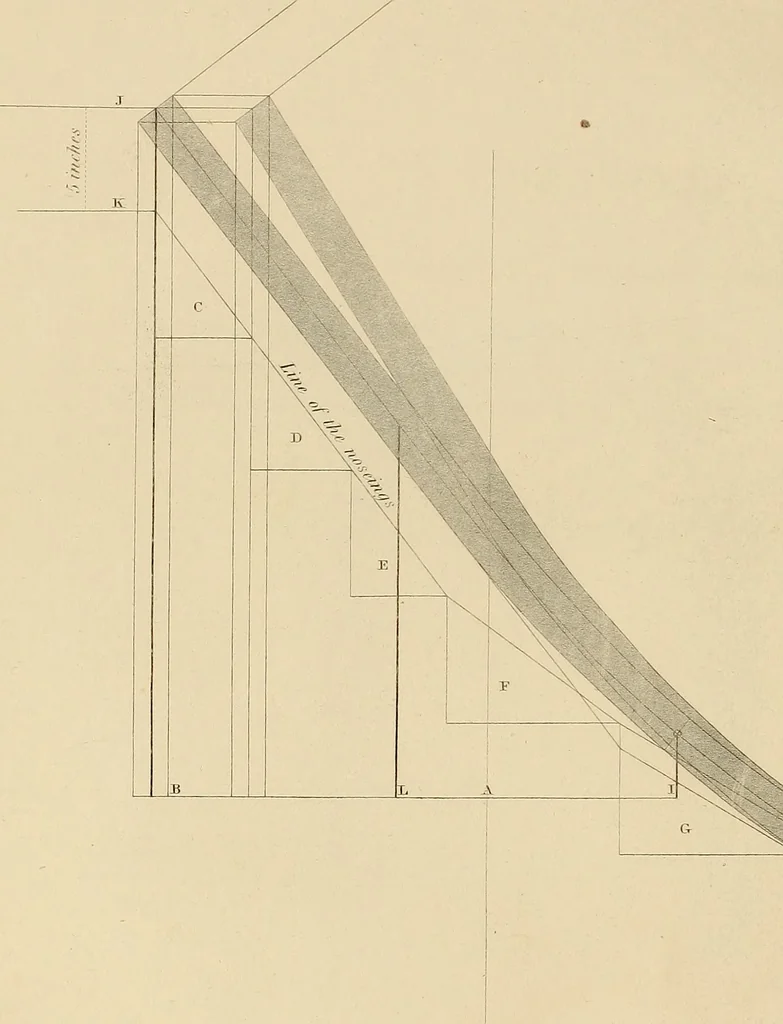

withthe line A H, and continue those lines parallel to A C and at the points of intersection withthe ordinates, trace the face mould O.—The dotted line S shows the over wood for cuttingthe square or butt joint. 84 HAND-RAILING. PLATE 59. Plan of a stair-case having 8 winders. The manner of finding… … HAND-RAILING. PLATE 60. To draw the falling moulds for stair-case, Plate 59. Let A Bhe the stretchout of the convex side of the rail, and A /the straight portionattached to the circular part—draw the flyers i?and G, and the four winders C D E and F,also draw the base line B I, at any convenient…
