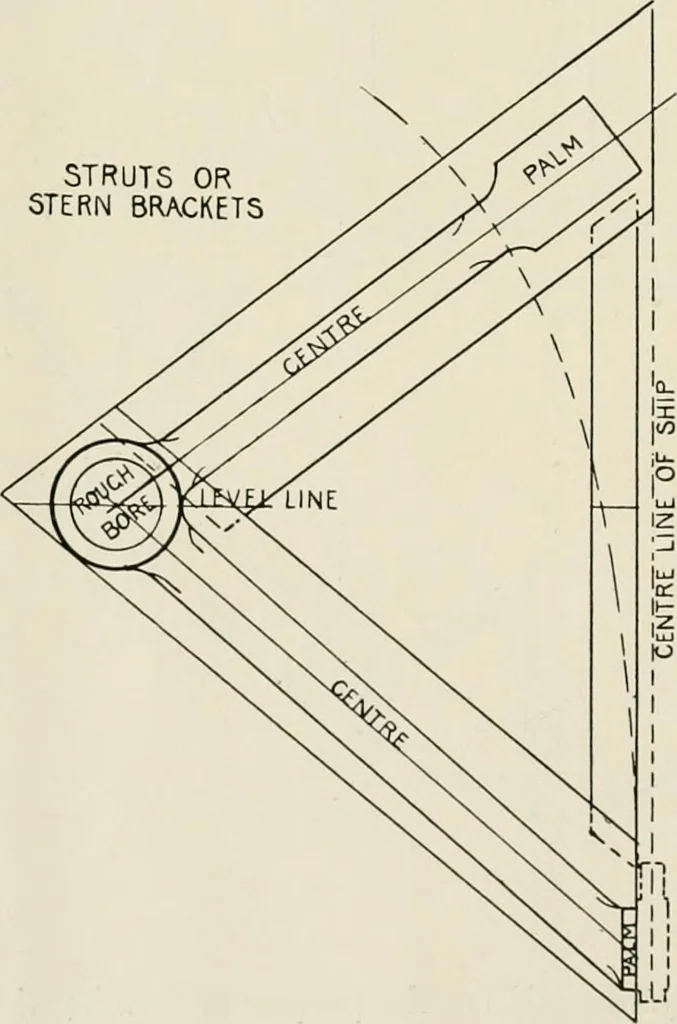

PLAN spread of the legs, boss, and rough bore. This is tried upon theship when in frame, before it is sent to the works, from which, in conjunction with a Fig. 70. STRUTS ORSTERN BRACKETS … inexpensive method is shown on page 13. figured drawing or trac-ing, moulds for castingare made. It may benecessary to give bevelsfor shafts. Where thepalms are planted onthe outside of the shellplating, sectional tem-plates of the ships sideshould be supplied toform patterns. A tem-plate of T form…
