Pomilio, Ottorino · New York, McGraw-Hill · leaf 305

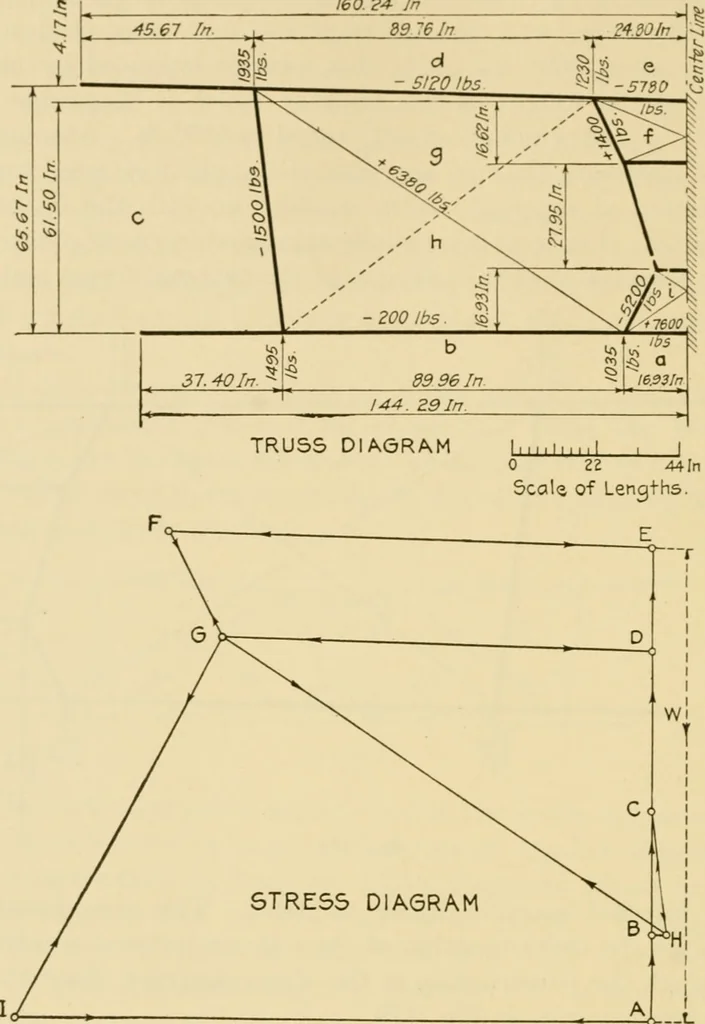

trated,for our example, in Fig. 179. Referring to treaties on graphic statics for the demonstra-tion of the method, we shall here illustrate, for convenience,the various graphic operations. The values of the reactions on the supports individuatedby zones ab, be, cd, and de are laid off to a given… … 0 1000 2000 lbs. Scale •of Forces FiQ. 179. MAIN PLANES AND CONTROL SURFACES /44 29 In 291
Airplanes
