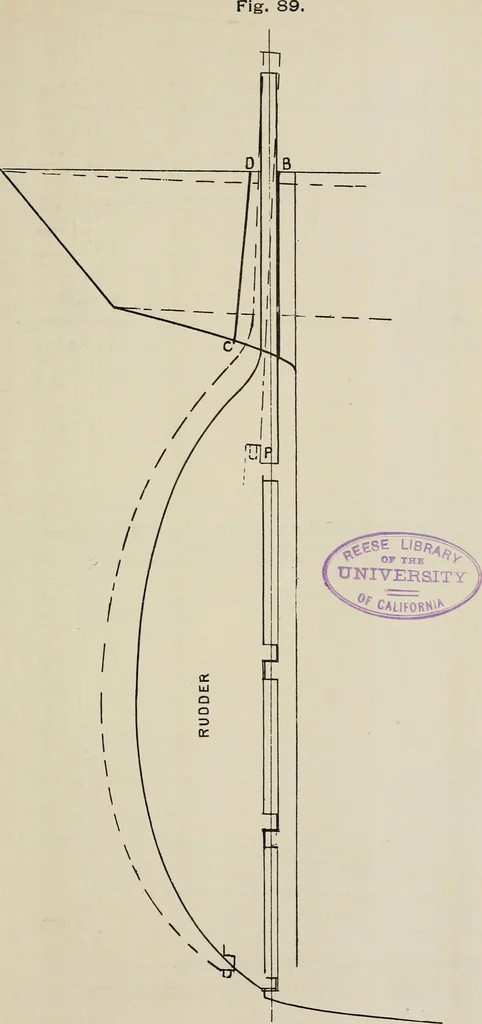

C1 to C2; make E1 C2 and F D1 square toDC1. Draw suitable section of bottom, with outstretch E2C2: anda section for top, with outstretch F D1. The width will be decidedby the size of the attaching bars. Fix points h and c in the bottomsection; then girth the section for b, a, and c relative to the… … o 0)
