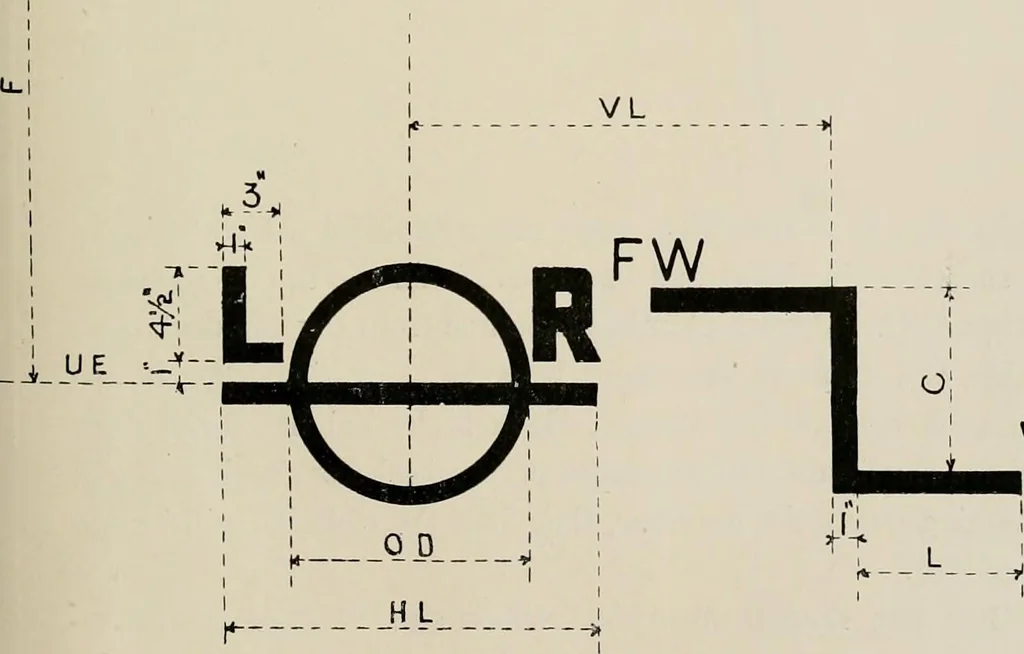

SD Fig. 98. … WNA S D = Top of Statutory Deck Line.F = Freeboard. U E = Upper Edge of Horizontal Line passing through Centre of Disc.V L = 21 Inches. OD = Outside Diameter of Disc, 12 Inches, 1 Inch Thick.H L = Horizontal Line 18 Inches Long and 1 Inch in Thickness.L =9 Inches Long and 1 Inch Thick. C = These…
