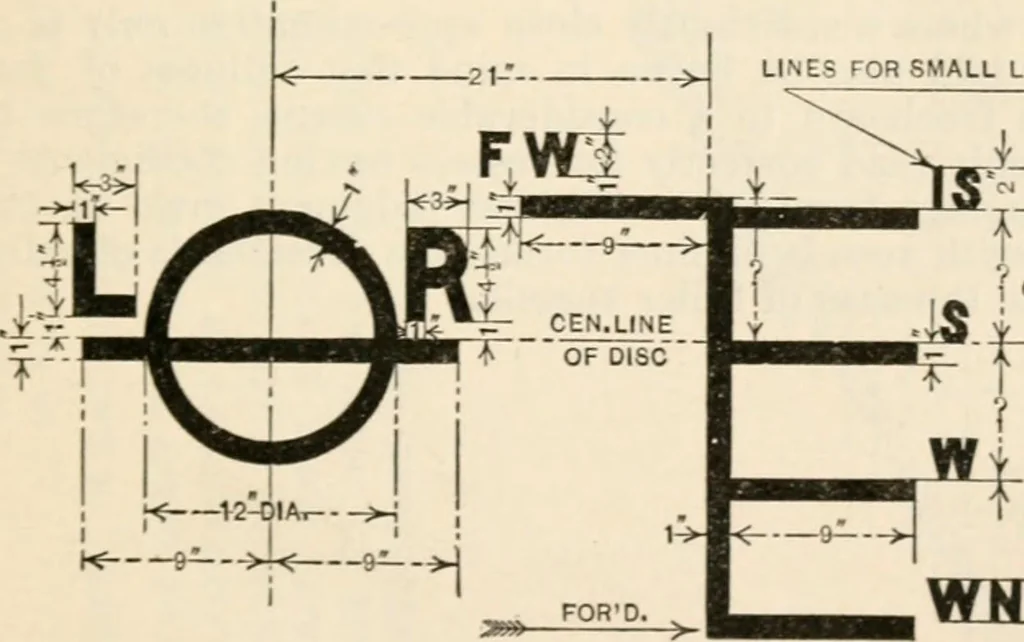

STATUTORY DECK LINE UPPER PECK LINE ( NOT TO BE MARKED ON SHIPj THE MARKINGS TO BE CUT INTOPLATING WITH CENTRE-PUNCHMARKS AS SHOWN AND PAINTEDWHITE 15 Li METHOD OF MARKING LINESAND LETTERS WITH CENTRE-PUNCH. CENTRE OF DISC TO BB PLACED AT THE MIDDLE OFTHE LENGTH OF THE LOADWATER LINE … LINES FOR SMALL LETTERS i THICK. L THESE DIMENSIONSTO BE TAKEN FROM1 CR. OF DISC TO TOPEACH LINE WSK STBD. SIDE SHOWN- PORT SIDE SIMILARFig. 30. 90 The Naval Constructor Freeboard for Sailing Vessels. Freeboards are assigned to sailing vessels on very much thesame principles as to steam vessels.…
