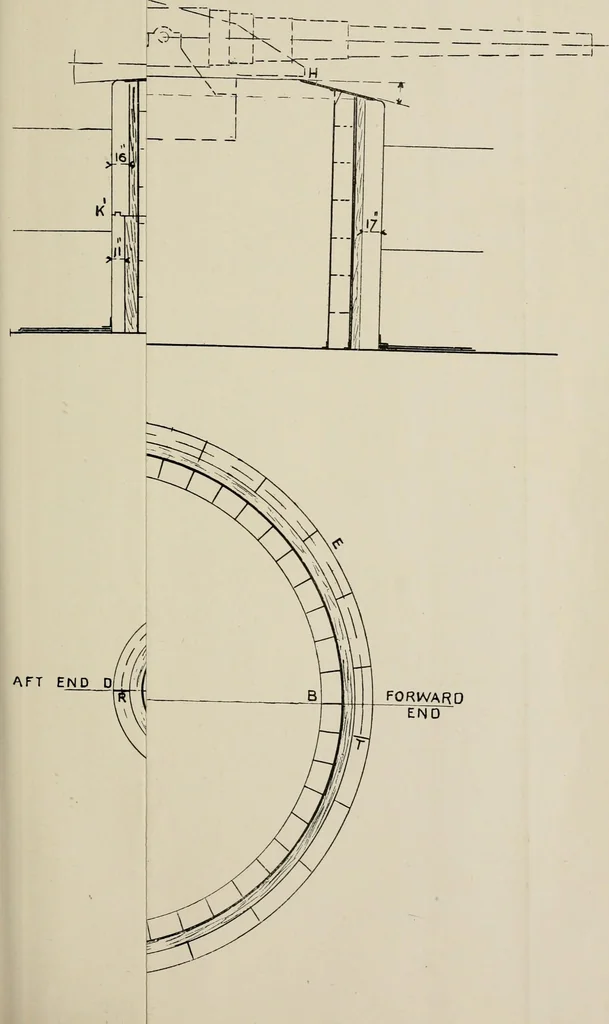

rames to cutthis line, then girth from R to T, marking on the lath, or paper, theposition of the frames, butts, and centre line. Lay this girth R T, withframe positions, on a base R1 T1, Fig. 130, and erect frame lines. Setoff G1 H1 parallel to R1 T1, and at a distance equal to the depth of… … Fig. 128. FORE & AFT SECTIONAL ELEVATION
