Naval architecture: a manual on laying-off iron, steel, and composite vessels (1898)
Watson, Thomas Henry · London; New York: Longmans, Green and co., [etc.] · leaf 299

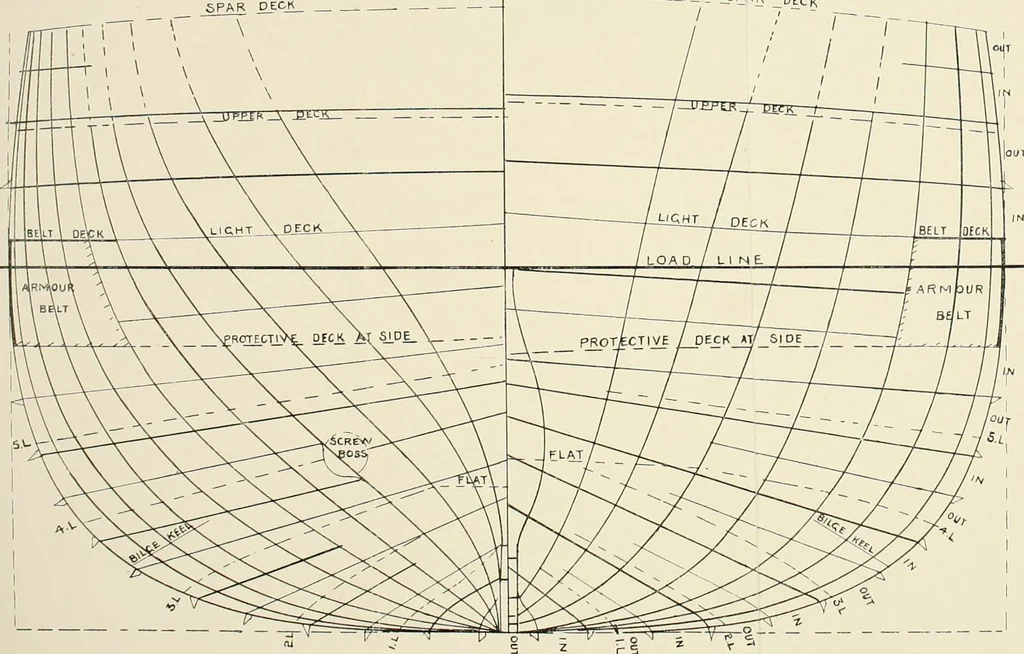

Fig. 133.BODY SECTIONS OF A BATTLE SHIP. AFTER. FORWARD. _3PAR Dtci, … SHELL PLATING AND BILGE KEELS. 12, CHAPTER XIV. Outer Bottom Plate Edges of a Battle Ship—Outer Bottom Plate Edges of aCruiser Bilge Keels ; where best Placed—Bossed Frames Forward inway of the Ram. SHELL PLATING AND BILGE KEELS. Outer Bottom Plate Edges of a Battle Ship.—These arefirst arranged,…
Naval architecture -- Handbooks, manuals, etc · Naval architecture · Ships, Iron and steel
