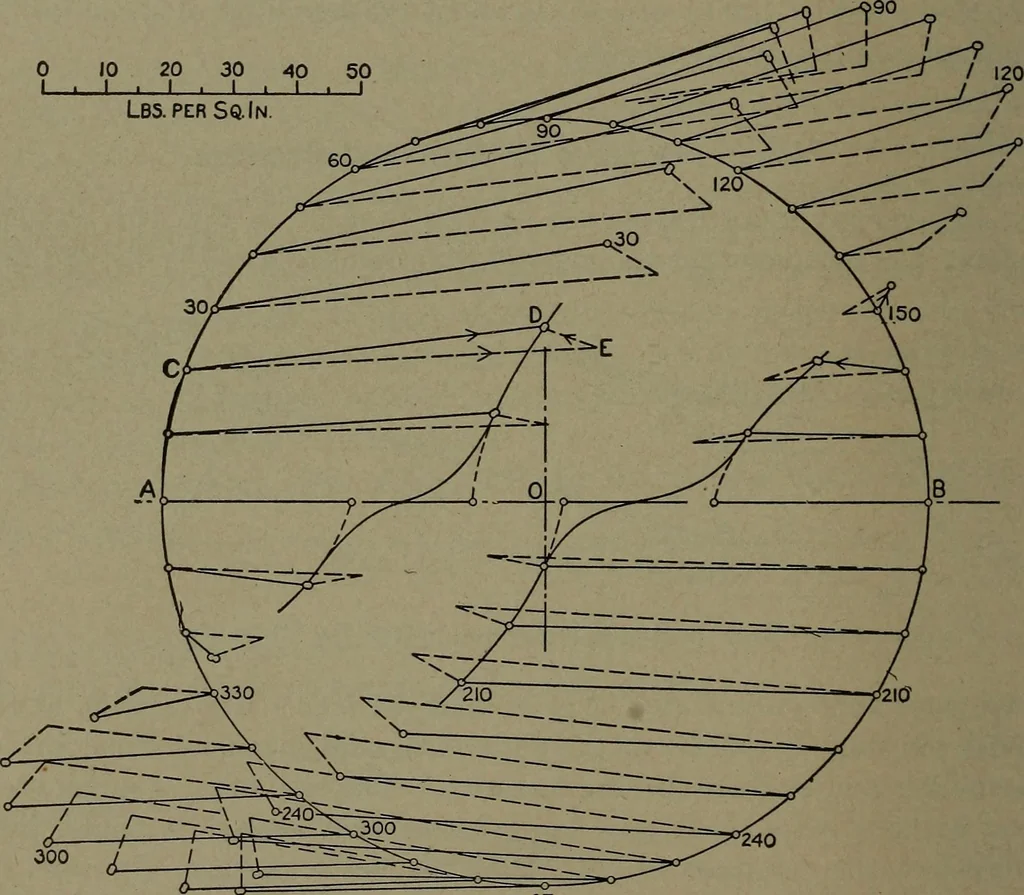

the value of F0/A is 36 lb., due to a reciprocating masswhich includes half the rod. Of the total weight of reciprocating parts,a good average assumption gives the piston slide 0.6 and the connect-ing rod 0.4: then one-half of the rod equals one-third of the slide, andout of a total of 36 lb. the… … 270 Fig. 182. — Diagram of Crank-pin Pressures. tion, the line CE is the force S along the rod (found from the values ofPd in Fig. 172) and ED is the centrifugal force Fc, so that CD is thepressure Pc of the connecting rod upon the crank pin. It will be notedthat some of the D points are double: in…
