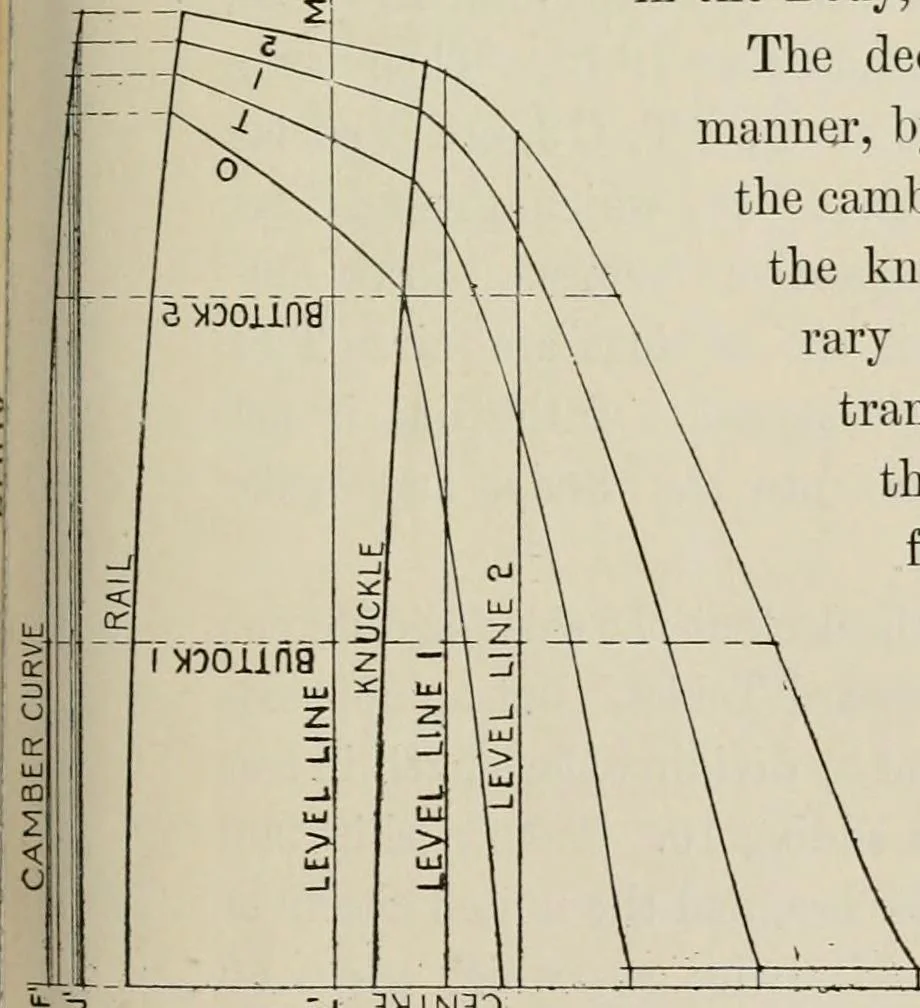

ights of the same onthe centre, buttocks, and knuckle trans-ferred into the Body, together withthe half breadths on the knuckleand rail from the plan, will enablethe sections to be drawn inapproximately. They are thentransferred, on a few closelyspaced level lines marked 1and 2, into the Half… … 3W1N3D 20 NAVAL ARCHITECTURE. transom already faired-up, which may necessitate a slight alterationin the form of the transom. This method is carried out in someyards before the fairing up of the main body, as part of the first steps. Diagonal Line Cutting After Knuckle.—To project thediagonal C A,…
