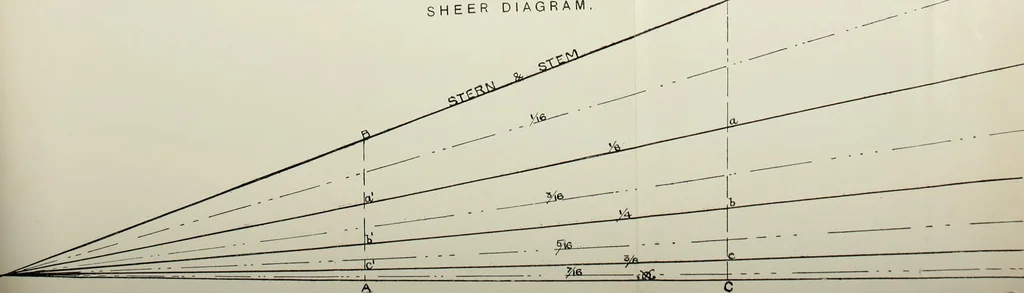

CONTRACTED LENQTH Fig. IS.SHEER DIAGRAM … LAYING-OFP THE SHEER DRAUGHT. 25 H J to K, and work your scale diagonally until you get a line L Kwhich divides easily, on which mark divisional points and producethem perpendicular to D E as shown. Lift the heights to the arcabove D E and transfer to the plan. Sheer under Freeboard Tables.—In the…
