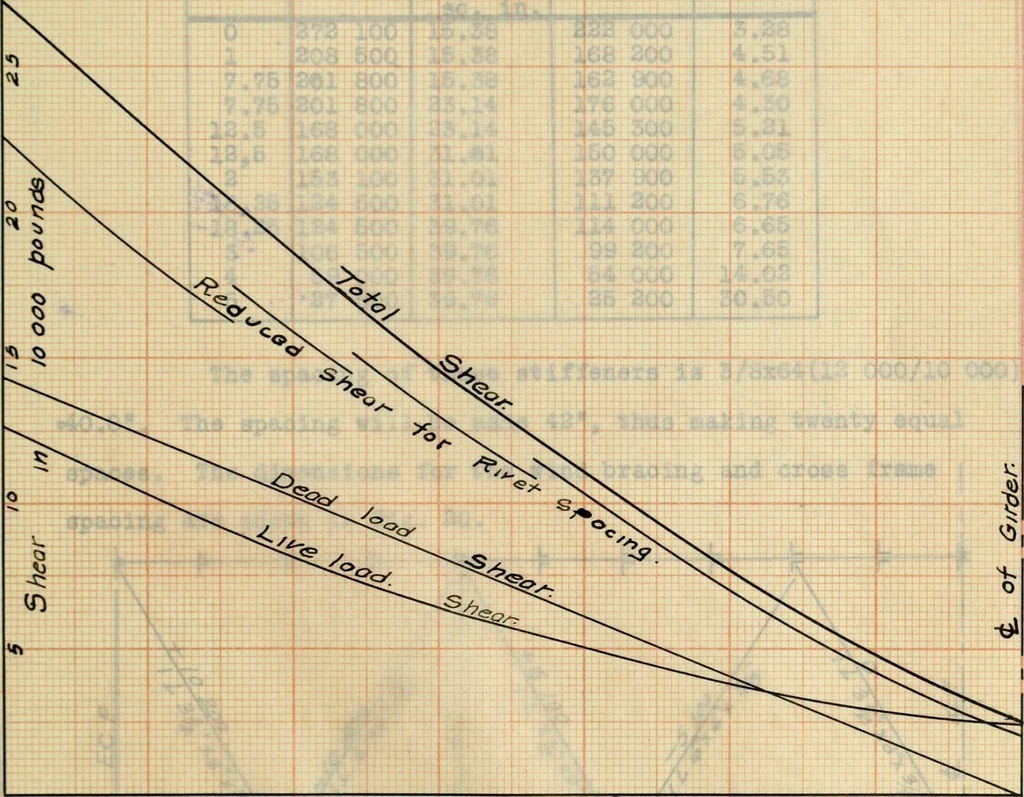

of the web is3.65 square inches making a required thickness of cover plates,using 16-inch plates with a net width of 14, of (43.0-(15.38+3,65))/l4=1.71. This will require one 5/8inch and two 9/16-inch plates, whose total thickness is 1.74. The effective depthof this section is… … Tenth Points. #g Span = 3 5 - O
