Naval architecture: a manual on laying-off iron, steel, and composite vessels (1898)
Watson, Thomas Henry · London; New York: Longmans, Green and co., [etc.] · leaf 82

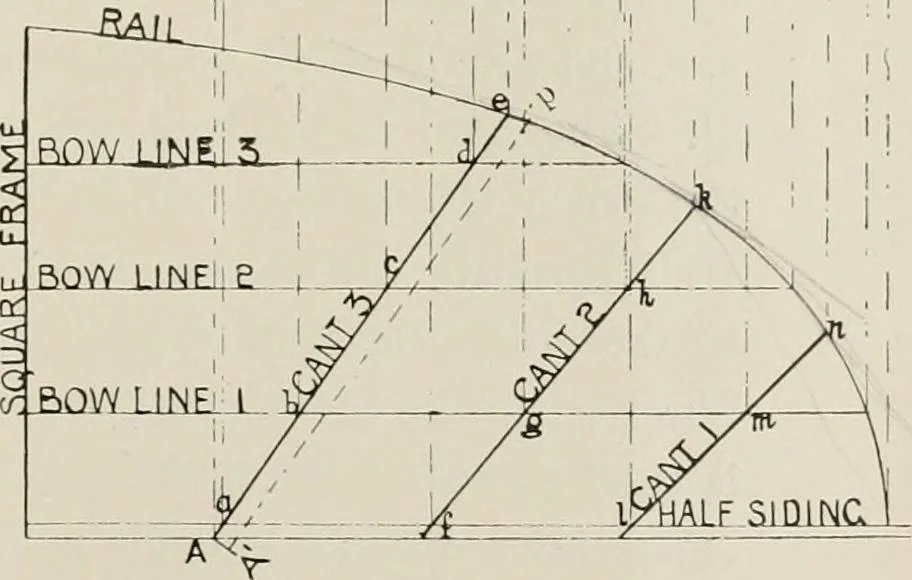

HAL^F ;BREADTf| i II I ■ … keelsons marked upon them. Sometimes a wood mould is made ofeach with the different markings on and a line for the foot. Projection of the Cants into the Sheer on the BowLines.—Show cants in the Half Breadth and the Body of Fig. 23 inthe manner already described. Square up the points a, 1>, c,…
