Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 478

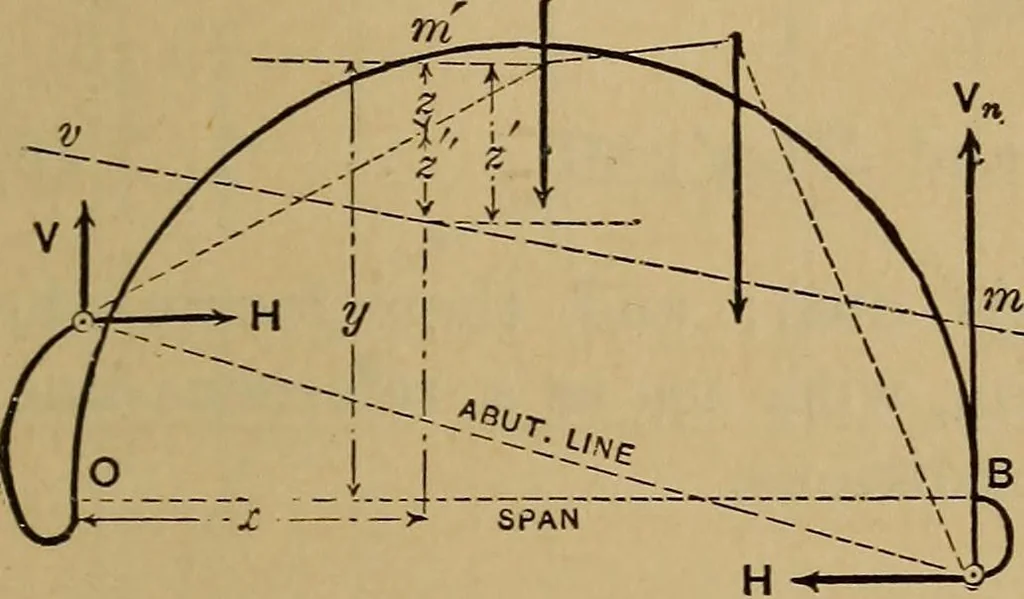

etrical about a vertical line. Fig. 429 shows such arib under any loading Its span is OB, which is taken asan axis X. The co-ordinates of any point m of the ribcurve are x and y, and z is the vertical intercept betweenm and the special equilibrium polygon (as yet unknown,but to be constructed).… … Fig. 429. Czds=0; Cxzds= ;0 and Cyzds=0 . . (1) c/o c/o c/o Now suppose the auxiliary reference line (straight) vmto have been drawn satisfying the requirements, withrespect to the rib curve that Czds=0 ; and Cxzds=0 e/o c/o (2) in which z is the vertical distance of any point w! fromvm and x the…
Mechanics, Applied · Engineering · Strength of materials
