Perspective and geometrical drawing adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thomas H. [from old catalog] · Toronto, W. Briggs; · leaf 42

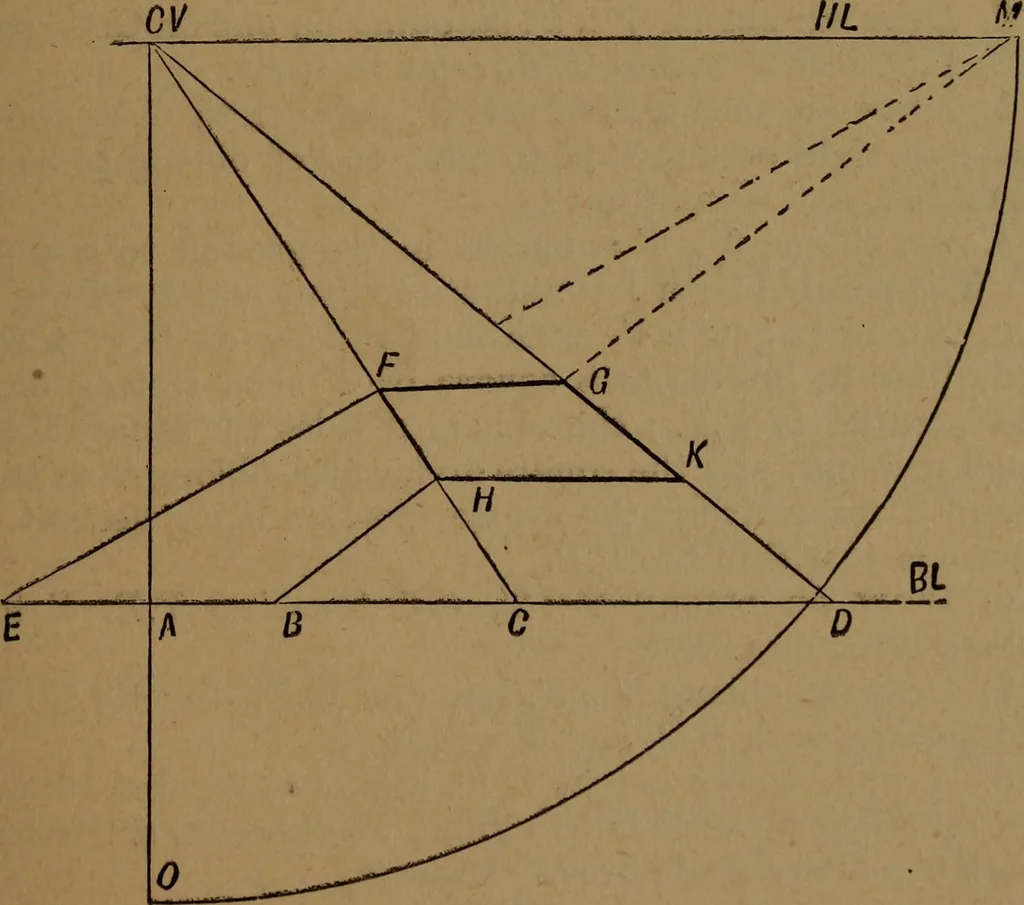

4 to right, _J_ to P.P. and 3within it, _l_ to G.P. and just its own height below it. 10. Draw a cube (edge 4) touching P.P. 4 to left, restingon G.P. 11. Draw a cube (4 edge) directly in front, and to st onG.P., one edge parallel to P.P. and 2 within it. TilE OBLONG. 37 The Oblong. An oblong is a… … Fig. 20. Example 1.—Draw an oblong 3 x 2^ lying on G.P., J toP.P., side 3, parallel to^ and 2 within it; oblong to be i toright. Specifications as before. 38 DRAWING. Construct figure as before. Find M, and measure off AC 4= (distance to right), CD = 3^ (length of side), and measure offBE 2…
Geometrical drawing · Perspective
