A new manual of perspective: containing remarks on the theory of the art, and its practical application in the procudtion of drawings ... Illustrated by numerous engravings (1849)
Whittock, Nathaniel · London, A. Hall & Co. · leaf 41

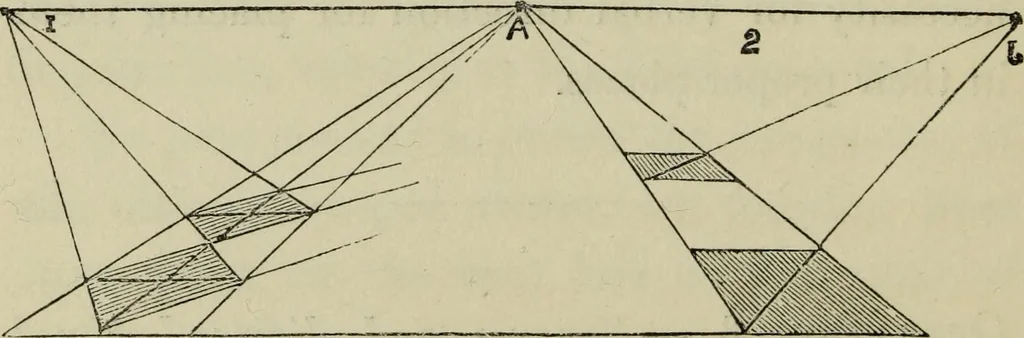

38 MANUAL OF PERSPECTIVE. shaped paving stones in an oblique direction.In this and the succeeding examples the pointof station will be omitted. The student is awarethat it is only required to ascertain the true placefor the point of distance on the horizontal line;and as that has been so thoroughly… … g C D E F mark the point of sight A. On the base linemark the size of the squares e f, and fromthose points draw lines to the point of sight a.Then from e draw a line to the point of dis-tance j; where this line intersects the linefrom f to a, draw a line parallel to the base— MANUAL OF…
