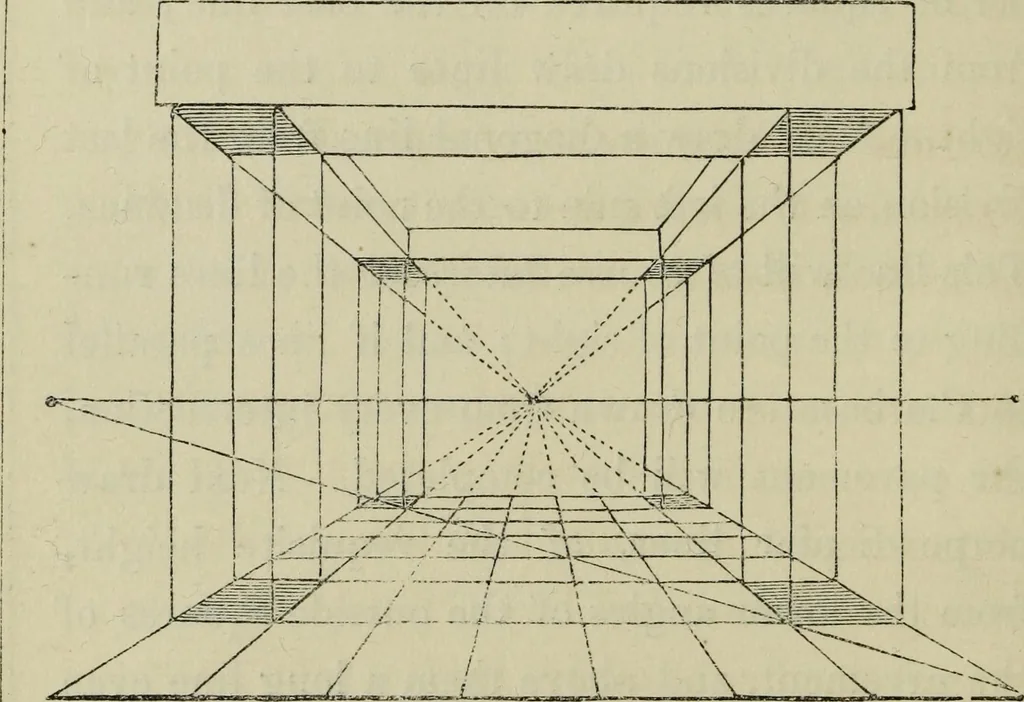

a long line evenwith the horizontal line. The lower line of thebeam projects a little beyond the perpendicularlines. From the ends of this projection drawtwo short upright lines for the ends of thebeam, and connect them with another line run-ning in a horizontal direction. The sides of 56 MANUAL OF… … sixth squares, on the pavement, draw perpen-dicular lines to the lines above the horizonrunning to the point of sight; then draw thesquare of the beam in the distance,—and thedrawing is complete. MANUAL OF PERSPECTIVE. 57 Fig. 41 shows the way in which the centre ofthe square figure in perspective…
