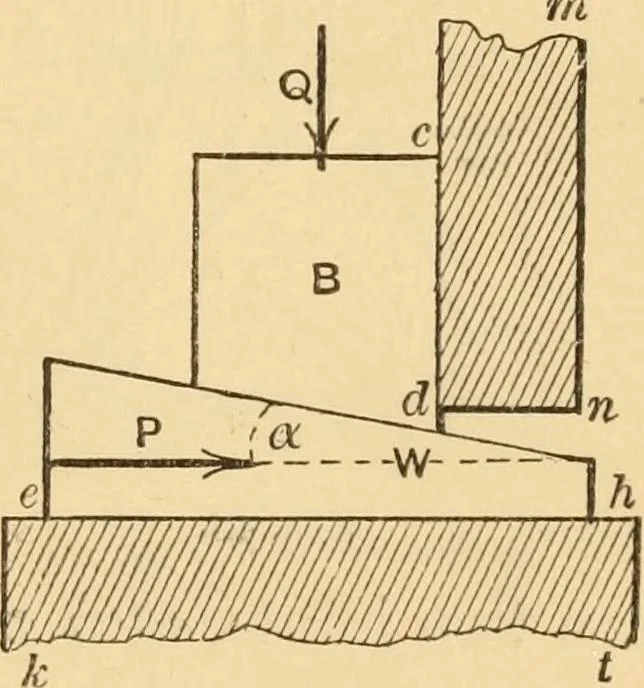

ressure on B is verti-cal and = Q. The weights of wedge andblock are neglected. There is supposed tobe no friction, otherwise t!.c results wouldbe quite different (see § 9 of Graph. Stat.of Mechanism, in this book, and p. 171, M. of E.). Given Qand o, what force P must be applied horizontally at… … Fig. 45. 40 NOTES AND EXAMPLES IN MECHANICS.
