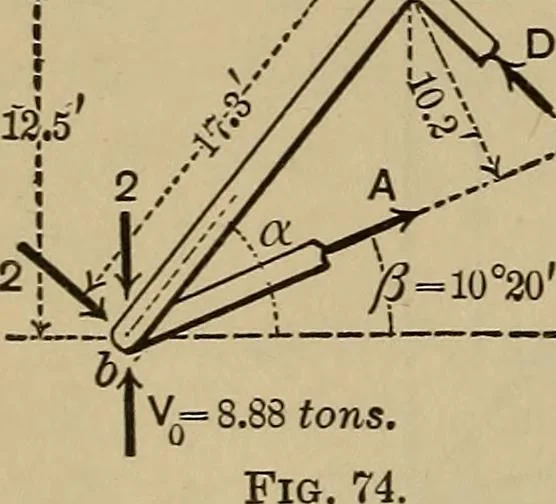

n-firmed. 2 (moms.) about a, similarly, gives6X9 + 3X7-2X1.7 + 2X 19 + 2 X 15.6 - 8.88 X 19 = 0;or, C := -\~ 9.1 tons, and is therefore compression. Although thesame free body would serve, let us determine stress D fromanother free body, that in Fig. 75, showing the remainder of thetruss. Assume D… … NUMEKICAL EXAMPLES. 63 Again, from the free body in Fig. 76, taking moments
