Notes and examples in mechanics; with an appendix on the graphical statics of mechanism; (1903)
Church, Irving P. (Irving Porter), 1851-1931 · New York, J. Wiley & sons; [etc., etc.] · leaf 92

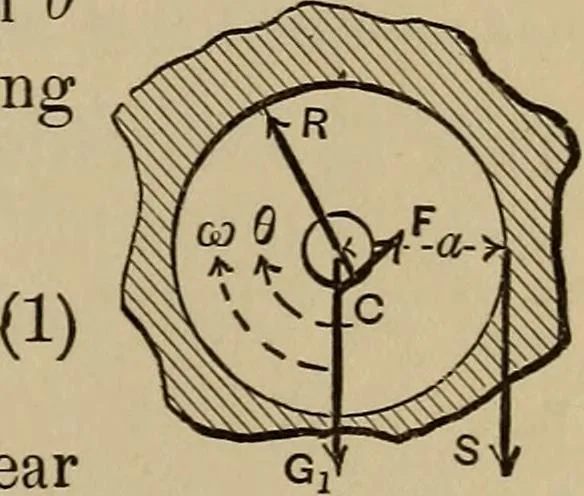

um and whose weight is neglected. A constant friction i^ = 10.5 lbs., acts at the circumference of the journals. It is required to compute the radius of gyration he of the rotating body by the experiment of noting the time t^ occupied by G in sinking a measured distance 5,, from rest. Suppose ^j =… … Fig. 97. while at the same instant the downward linearacceleration j9, = 6a, of G^ enters into the rela-tion involving the sum of downward forces for 6^ as a free body, viz.; O ^ S = mass. X accel, = —p, 9 (2) 84 KOTES AND EXAMPLES IN MECHANICS. Solving forp, we would find it constant, as also /S;…
