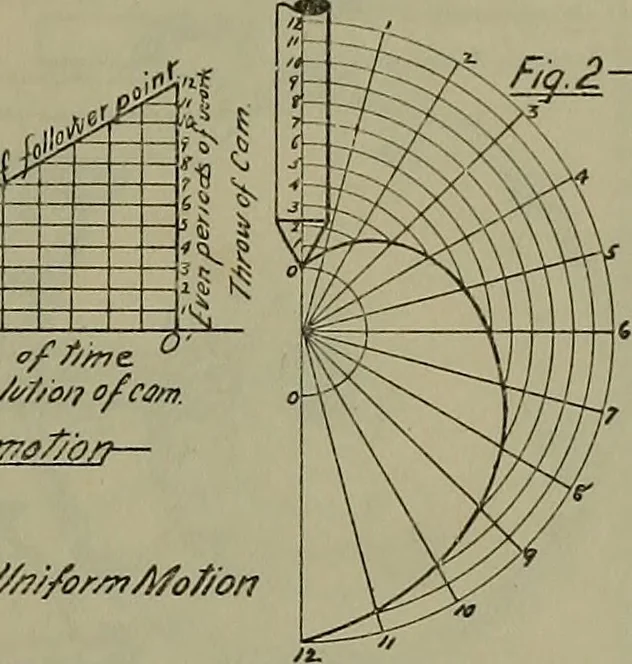

lines through these points ofdivision indefinitely beyond the semi-circle. Then online 0—12 lay off the divisions representing the travelof the follower point, and draw arcs of circles to rhecorresponding radial lines. Drawing a line throughthe points of intersection of arcs and radial lines, weget… … Co/77. Prob. I
