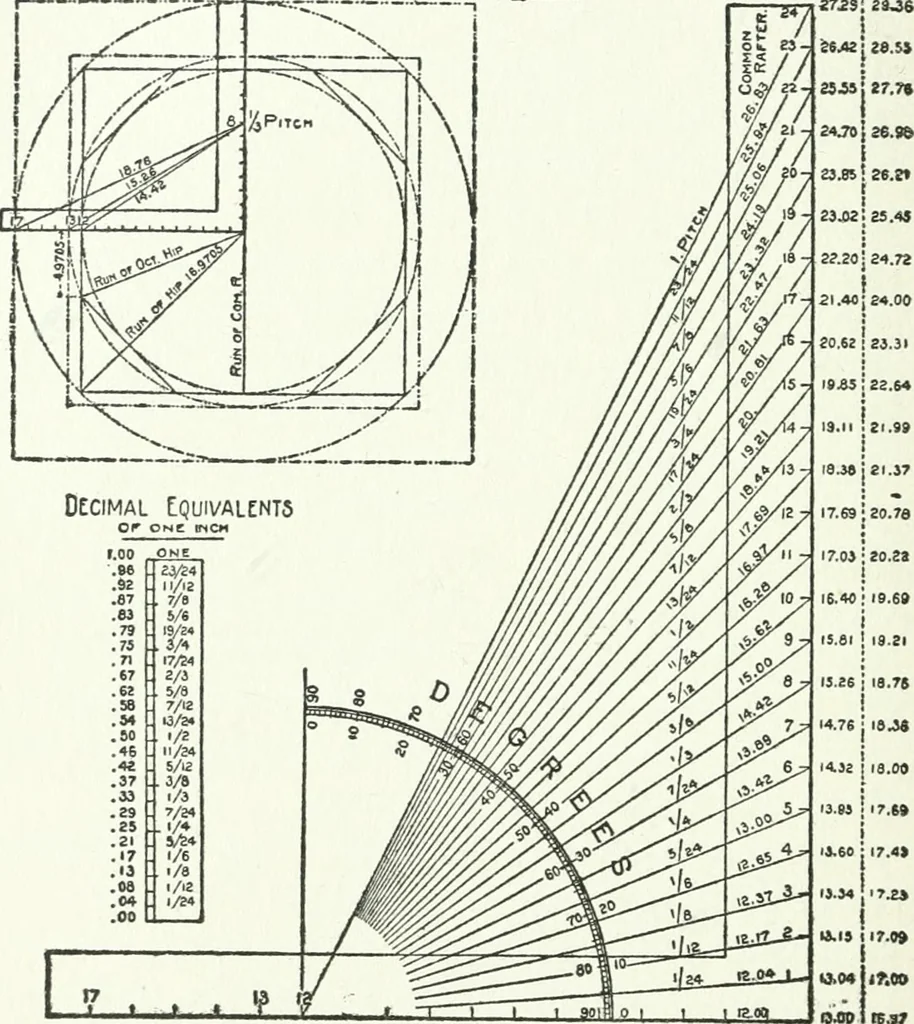

rafter are shown foreach inch in rise up to the full pitch; and theirlengths are expressed in decimal figures to theone-hundredth part of an inch; while to theright of the blade, the same are expressed forthe corresponding octagon and for the commonhip or valley for a square-cornered building, 92… … OJ)0! IS.S7 Fig. 51. Roof Pitches and Degrees on the Steel Square. cuts are concerned, the greater deviation beingin the hip for the square-cornered building. Itlacks .0295 of being 17 inches, and represents FRAMING 93 the run of the hip to a 12-inch run of the com-mon rafter. Its true length being…
