Notes for mechanical drawing; arranged for the use of the students of the Mechanic arts high school and the Evening school of trades (1904)
Mathewson, Frank E. (Frank Elliott), b. 1869 · Springfield, Mass. · leaf 16

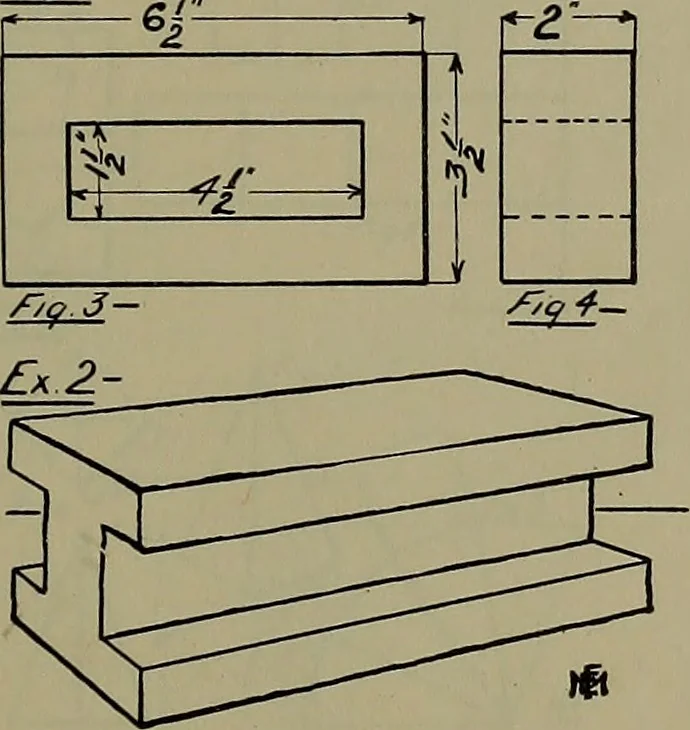

^vsA- … 1. Rectangular Prism.Make a working drawing showing three viewsof a prism 6\ long, 3\ wide, and 2 thick.Hole through the center of prism is 4^ X 1\-Fig. 1 is a perspective sketch or picture of theprism. Figures 2, 3, 4, show in order, thetop, front, and side views, each in its properposition with…
Mechanical drawing
