Notes for mechanical drawing; arranged for the use of the students of the Mechanic arts high school and the Evening school of trades (1904)
Mathewson, Frank E. (Frank Elliott), b. 1869 · Springfield, Mass. · leaf 8

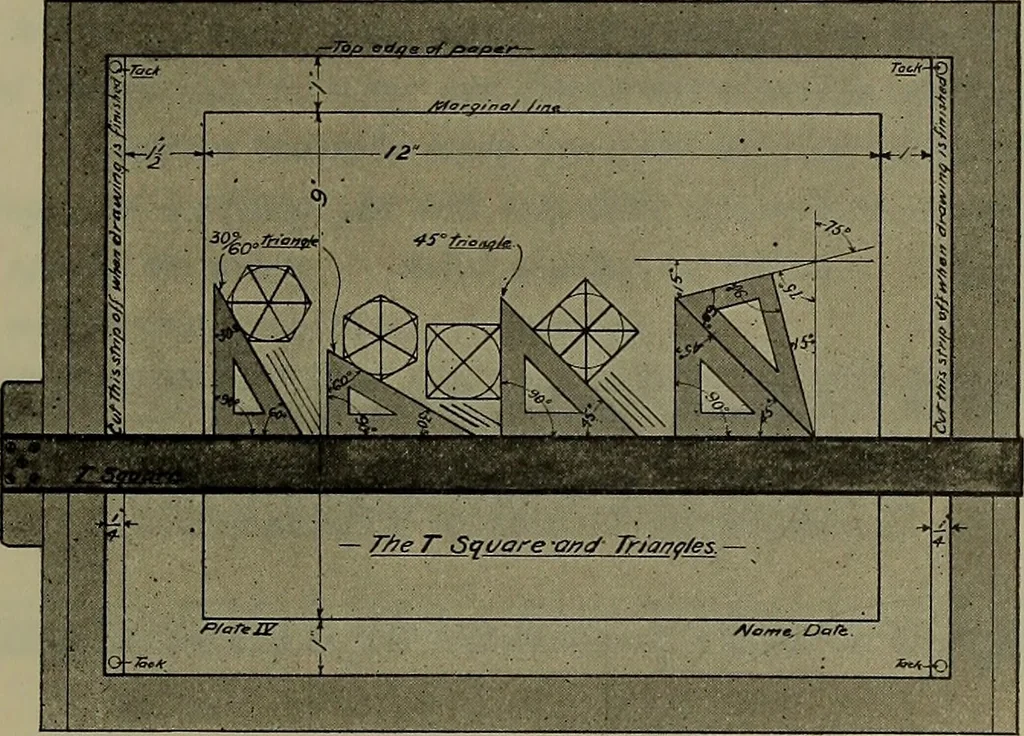

roblems, to be used in connectionwith such explanation or demonstration as, in the judgmentof the instrudtor, seems best suited to the classes. January 1, 1904 Frank E. Mathewson. I MECHANICAL DRAWING 1 MARGINS:- Tack the paper on the drawing board, and draw marginal lines as shown inthe drawing… … MECHANICAL DRAWING LETTERING. H Is important that all lettering should be done quickly and neatly.Every drawing should have a title, and poor lettering spoils the effect of the wholedrawing. A good style of letter to use is that given below. The size is determined by four lines one-sixteenth of an…
Mechanical drawing
