Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 96

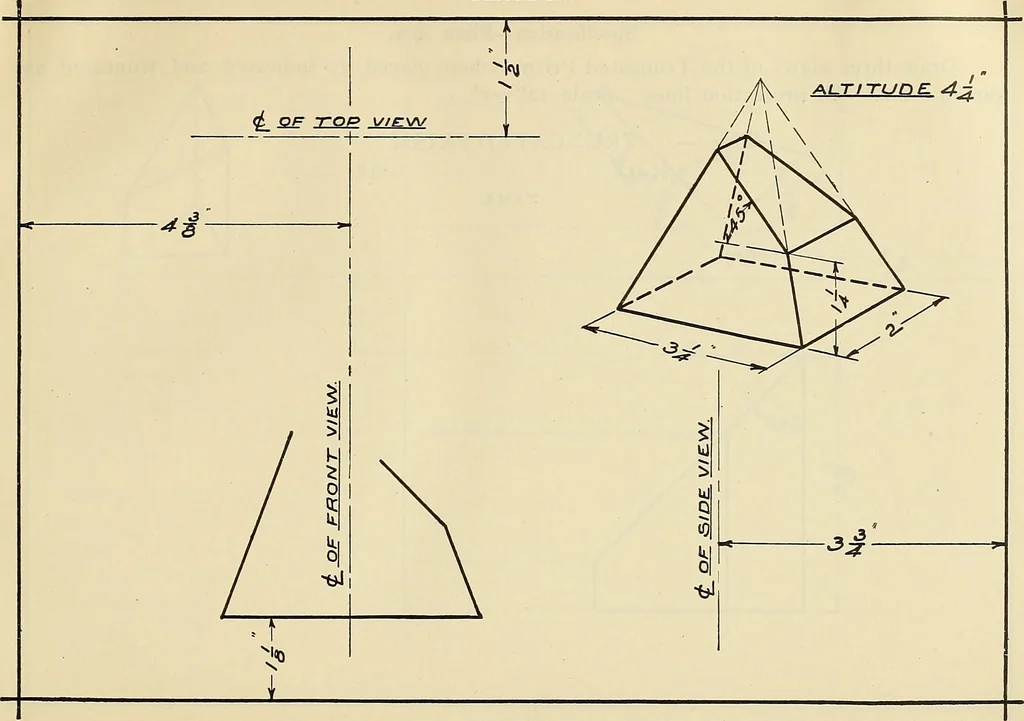

::li. ^i g2 MECHANICAL DRAWING PROBLEMS Specification—Plate 26. Draw three views of the Truncated Pyramid. The pyramid is so placed that a longedge of the base is parallel to the vertical plane. It is cut by an imaginary plane which formsan angle of 45° to the horizontal plane and 90° to the… … 94 MECHAXICAL URAWIXG PROBLEMS Specification—Plate 26A. Draw three views of the Truncated Prism when placed as indicated and truncated asshown. Show all projection lines. Scale I2=i. Title:— TRUXXATED PRISM SCALE DATE rAME PLATE 26A
Mechanical drawing
