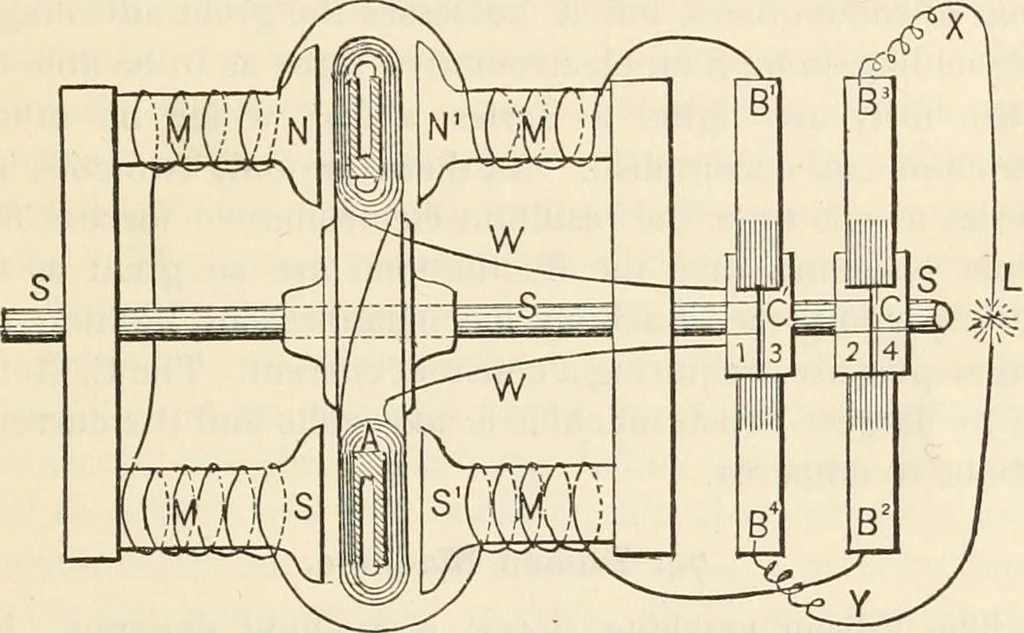

or the induction of a highelectromotive force is evident. A comparison betweenFigs. 29 and 30 shows this to be nearly the condition ex-isting in the Brush machine. The latter figure is a plan ELECTRICITY AND MAGNETISM. 3 of the machine. As each pair of coils is connected to aseparate commutator… … 2, B\ M, Bl <l> B\LX, BK Fig. 30.numbered 1, 2, 3, 4, as illustrating the way in which theends of the coils, taken in regular order around the arma-ture, are connected at the commutator. The currents in-duced in the several coils at any one instant will have thefollowing circuits, coil 4…
