Fry, Horace Pugh. [from old catalog] · Philadelphia [The John C. Winston co.] · leaf 13

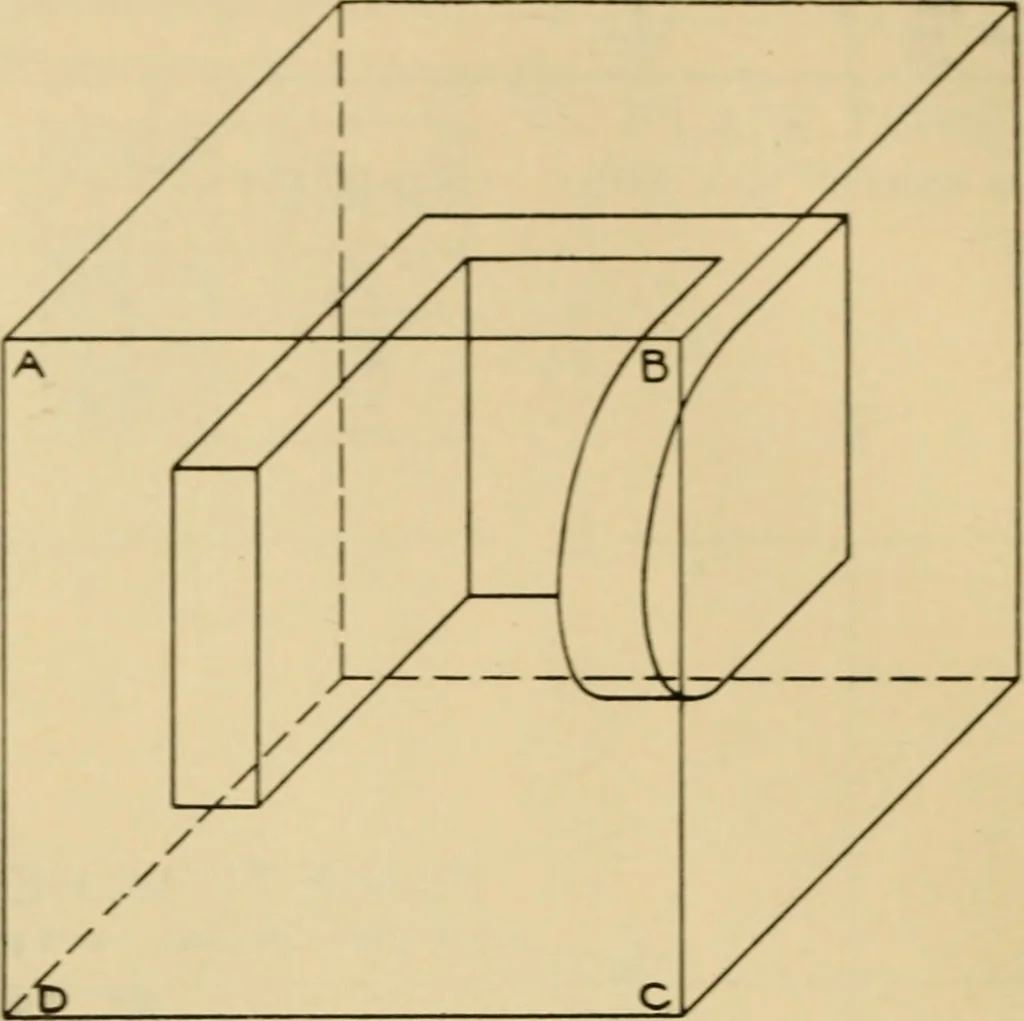

s, not asthe draftsman may have intended to show. ARRANGEMENT OF VIEWS. 1. All drawings are to be madeas though the object were situated in the third angle and the views are to be arranged accordingly. (Faunces Descriptive Geometry, Fig. 1.) Assume the object, of which a drawing is to be made, to… … FIG. 6each face of the box. Imagine one of the faces A B C D to coincide\\-ith the plane of the paper and revolve each of the others, about itsintersection with that plane, until they are all in the plane of thepaper, then the views will be in their proper relative position. Thenames and positions…
Mechanical drawing
