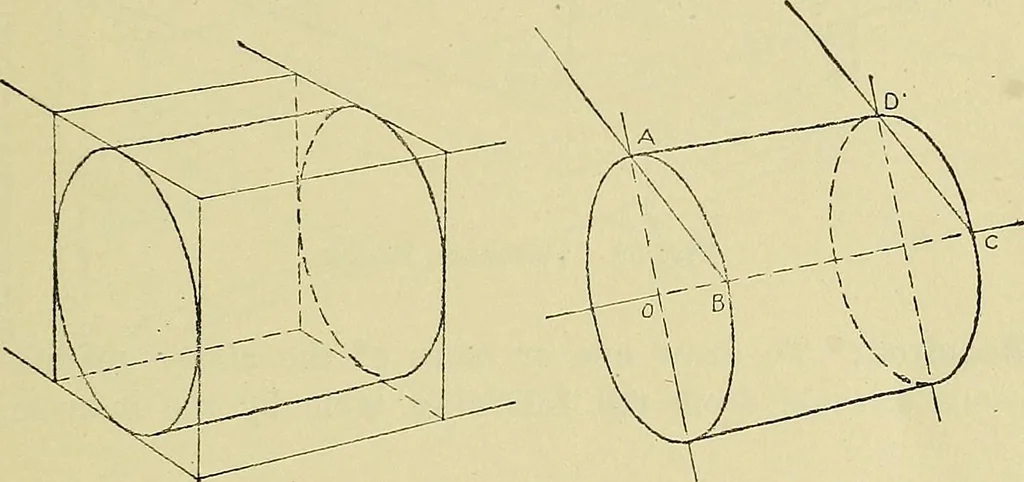

s of the bases is equal tothe horizontal receding edge of the measure cube. This distancewill be shorter as the angle of the axis of the cylinder to thehorizon increases. 2. The major axes of the bases are perpendicular to, and theminor axis coincident with, the axis of the cylinder. 3. The major… … Fig. 57. Cylinder Inscribed in aMeasure Cube Fig. 58. Measure Cylinder 4. The length of the minor axis of the nearer base will dependupon the angle that the axis of the cylinder makes with thehorizon. Fig. 56 illustrates the case in which the minor axis islengthened, due to the axis of the cylinder…
