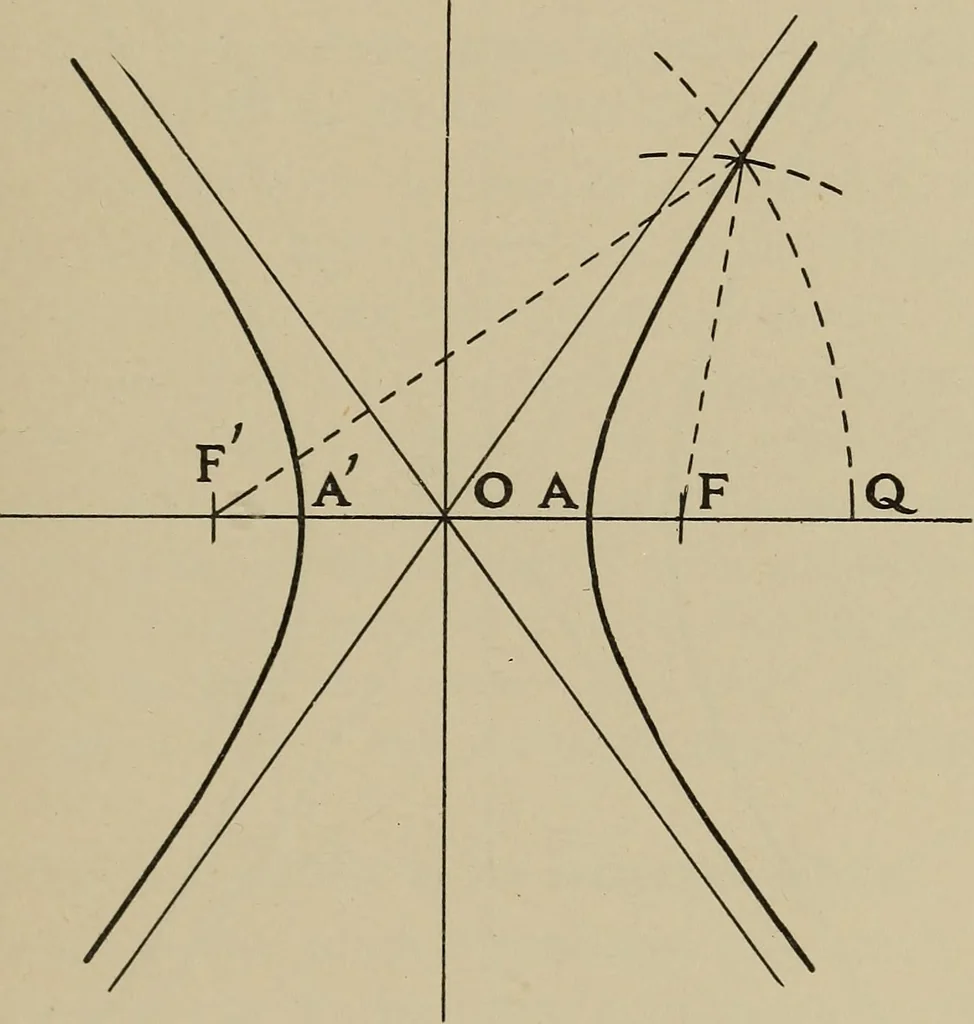

points, A and B, although verynearly. To find the point of tangency, of the curve with anyone of the lines, say 1-1, lay off a distance on the axis, OE,equal to OD. At E erect a perpendicular to cut 1-1 in thepoint of tangency. Irregular Curves and Geometrical Drawing 97 37, To draw a hyperbola by… … fixed line, called the directrix, is a constant and greater thanunity (see Fig. 23). We shall work the problem, however, by the principlethat the difference between the focal radii to any point onthe curve is a constant. Let F F be the focii, and O thecenter. Assume the vertices of the curve, A A^…
