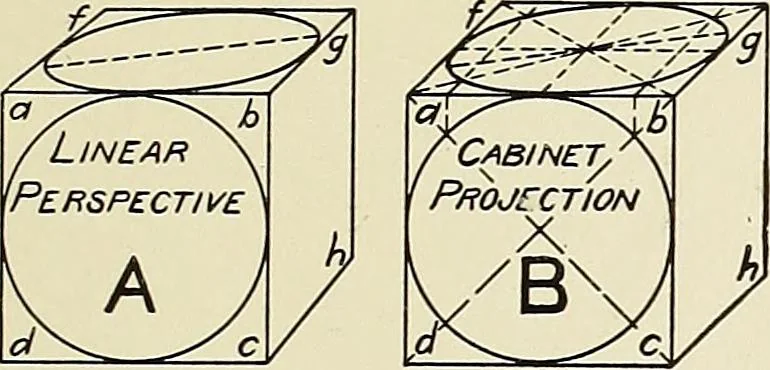

ArtistsPerspective Fig. 3. the eye to a great distance, the drawing would be Uke Fig. 4, B. Such a drawing is called a Cabinet Projection. Its peculiar features are that one face of the object is shown in its true sizeand shape, while lines perpendicular to this face appear inclined at 45°and of… … Fig, 4. a 6 y OfiTHOQfiAPHIC Projection d c h Fig. 9. Referring again to Fig. 2, A, suppose the eye be removed to agreat distance from the object along a line RE which is perpendicular tothe picture plane. The light rays from the objectto E would then become practically parallel to REand therefore…
Mechanical drawing · Lettering
