Notes on technical sketching and free hand lettering for engineering students (1912)
Smith, Alton Lincoln, 1867- [from old catalog] · Worcester, Mass., The author · leaf 111

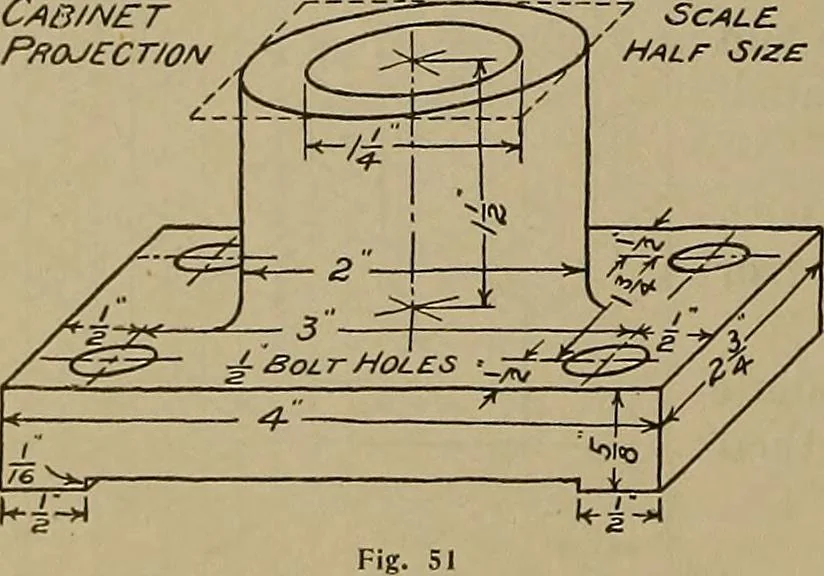

ts a and b in the front face. 265. Fig. 51 shows a Cabinet Projection with completedimensions. 266. Oblique projections, similar to cabinet projections,are often used in which the front face is shown in its true size andshape while edges perpendicular to this face are drawn at anyconvenient angle… … 109 267. Exercises. From Fig. 47, Rectangular Frame A, Triangular Prism B, Hexagonal Prism C,Square Pyramid D, Hexagonal Pyramid E.—From Fig. 48, Rod Rest B, Conveyor Bucket D, Face Plate,F, Shoe J, Half Box M, Strap O, Wrench U, Stirrup V. Make a drawing similar to Fig. 7 in which the object is a…
