Mechanical drawing for industrial and high schools (1915)
Leeds, Charles Carley, 1870- · New York, D. Van Nostrand company · leaf 46

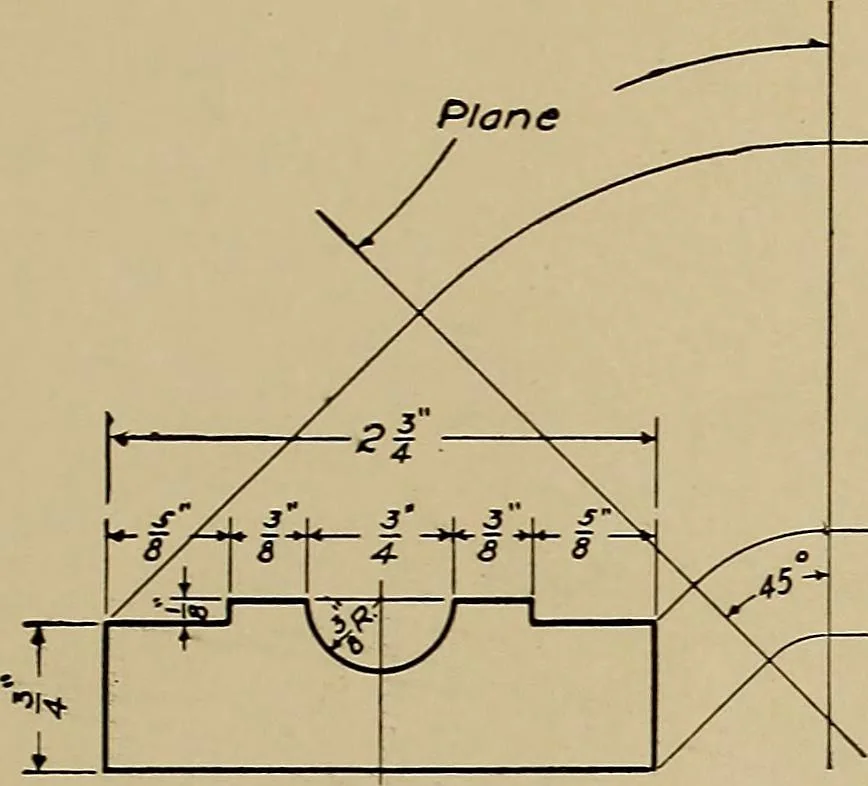

he lengthof the block. View (a) is projected upon a plane which is set at an angle of45°; this plane is then raised to a vertical position and swungaround one-fourth turn or 90 °, so as to show view (b). View (c) should be an end view of the block tilted at an angleof 45°- Lay out the three views… … Plane Project end view here c class Industrial ^HE QaRNEGIE INSTITUTE OF TECHNOLOGY name: John W. Roberts oatc Oct.IO.07. PITTSBURGH, PA. .... PV? OJEC TIONacALz Full Size dshg.no.C.IOIS LESSON No. 20. GEOMETRICAL PROBLEMS.—Before taking up the follow-ing problems in geometrical construction, the…
Mechanical drawing
