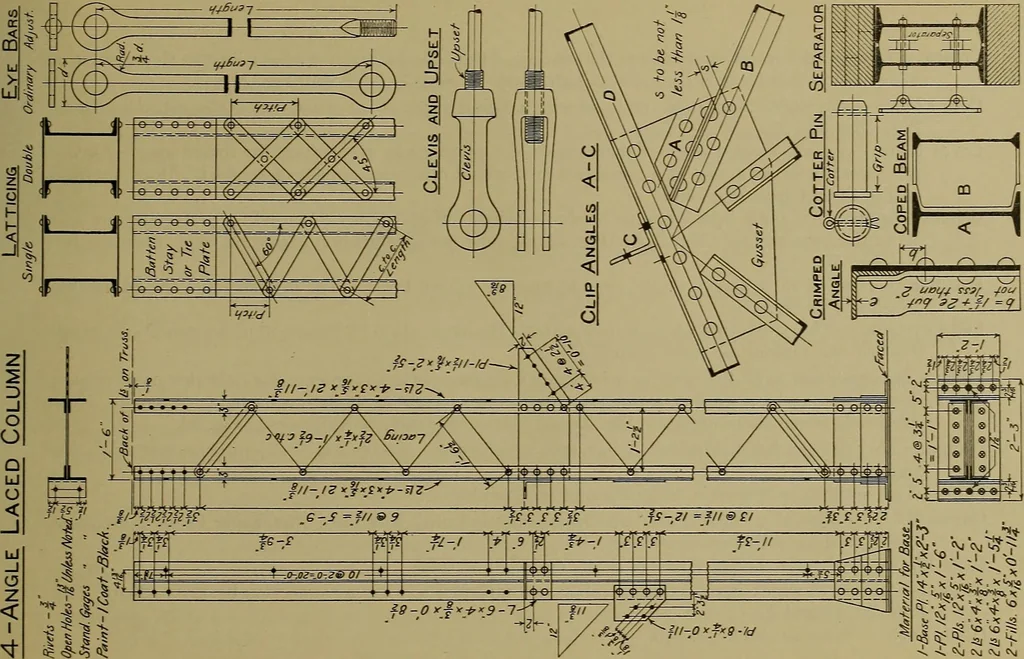

cross section is C shaped. It is specified on a drawing as a C.Clevis.—A forked piece with a threaded hole at one end, used for connecting a pin plate to a tie rod. See Fig. 22.Clip or Clip Angle.—A short angle used for connecting two pieces. In Chp Angles, Fig. 22, a clip is used at A to provide… … *? . H* t ^ 1 1 1 ■* -4m .1 v^ --.^ 3: ^ ^^ ^j v^-^^ v> ^; >« -a ^S; ^ (O lO .^ ^ < CVJ CVJ C\j C\4 Fig. 22 66 Coping.—As applied to steel work, this is the cutting of the end of a beam or.channel to fit the contour ofa beam or channel which it abutts at right angles. See Coped Beam, Fig.…
