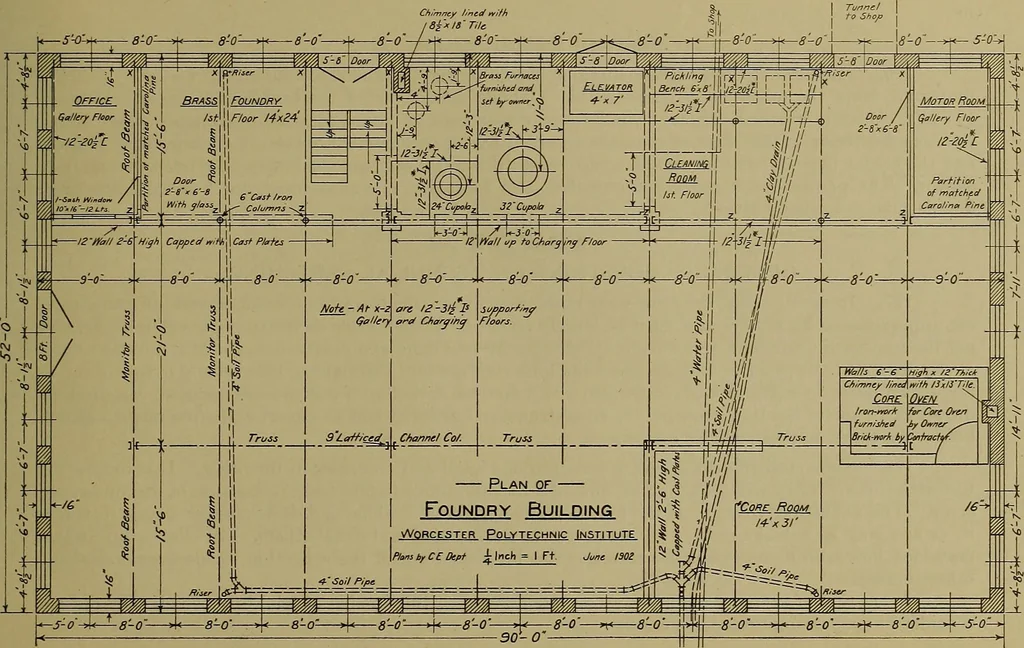

t reducing its strength. It is used with nuts, clevises and turnbuckles. See Clevis and Upset, Fig. 22.Web.—This is the part of a plate girder, I beam or channel between the flanges and is designed to carry the shear. Fig. 10. Working Lines.—These are the center lines used in laying out the parts… … Fig. 23 70 PLAN OF BUILDING FIG. 23 176. The plan of the Foundry Building shown in Fig. 23 illustrates the salient features of such adrawing. Note the following characteristics. Outside dimensions of the building are given, thicknessof walls, center to center location of windows and doors, size of…
