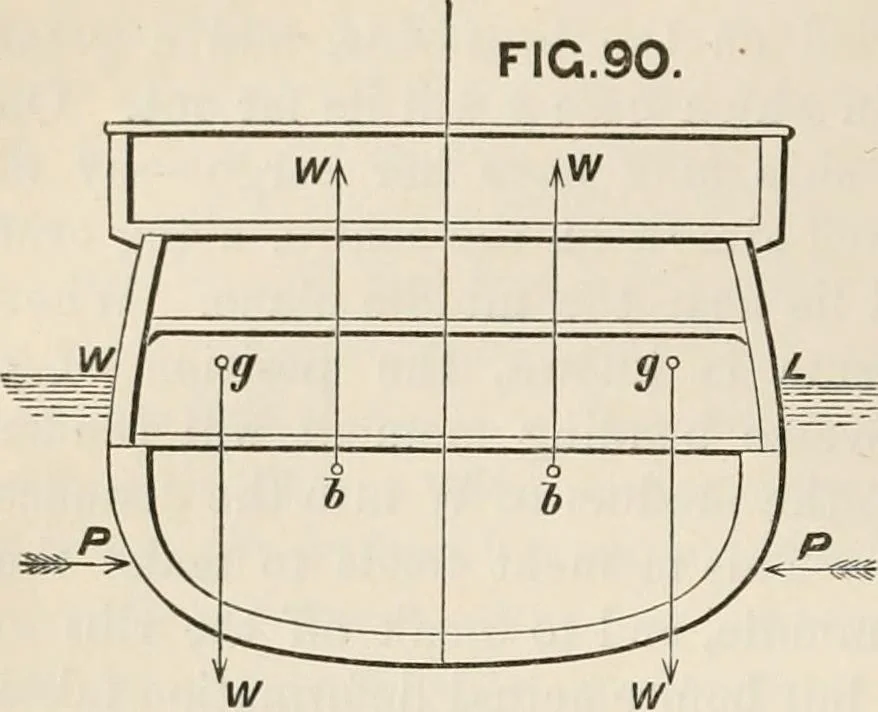

ies built for the Royal Navy during the CrimeanWar were docked on bilge as well as central blocks. The reduc-tion of transverse bending strains by these special supports iseasily explained; for instead of an upward pressure W at themiddle line and the downward force W forming a couple, theresultant… … Ships afloat and at rest in still water are not usually strained80 severely as vessels supported on the keel only; for a reason very similar to that justFIG.90. given. Fig. 90 illustrates this case. Taking one halfthe ship separately, itsweight W acts through </,as before explained; butthe…
