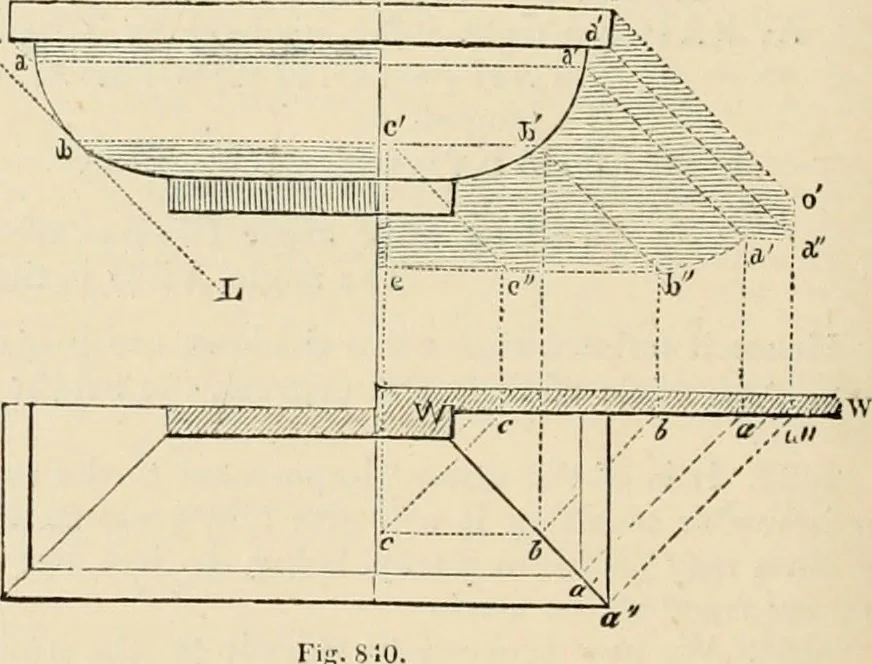

shade,is represented to the right by b, and ^to the right on the jilan by b, whenceby a vertical cutting the line bb inb, the boundary of shadow whichb will cast is obtained, cc on theplan is in projection the distanceof the line of shade c from thewall whereon the shadow is cast,and its place in…
