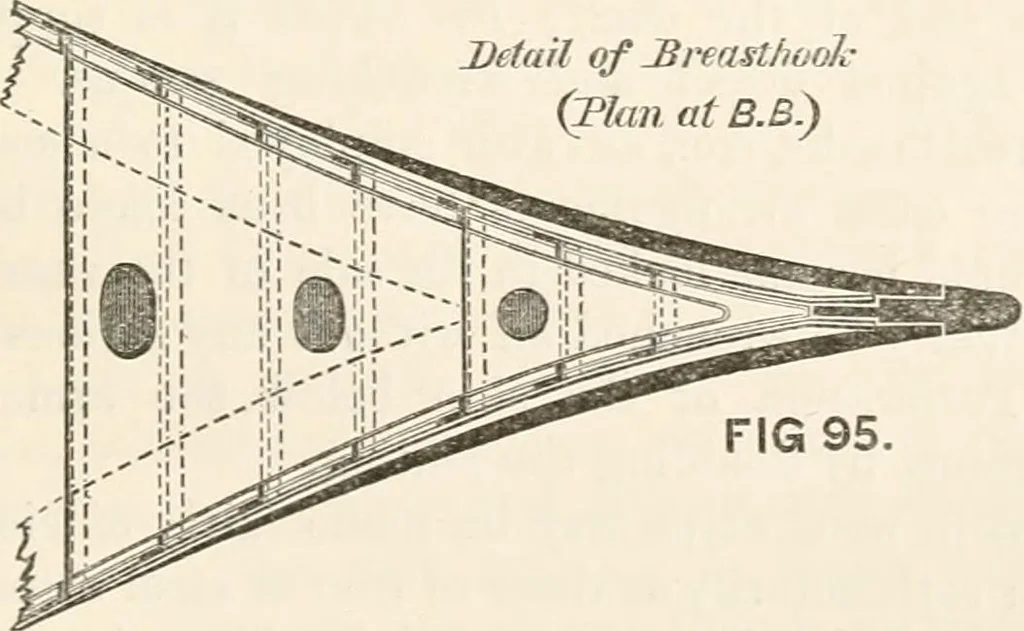

line belt of armour extending to the bow; and only a fewexplanatory remarks will be required. The stem is a solid iron forging, weighing several tons. Against direct strains tending: Detail of ^Ieasthook(TlanatB.£.) … to force it backward, it is supported by the longitudinalframes or breasthooks (I, I, in Fig. 93), as well as by the armour-plating, backing, and skin-plating, all of which abut against thestem. The breasthooks are very valuable supports, being very 320 NAVAL ARCHITECTURE. chap. viii. strong yet…
