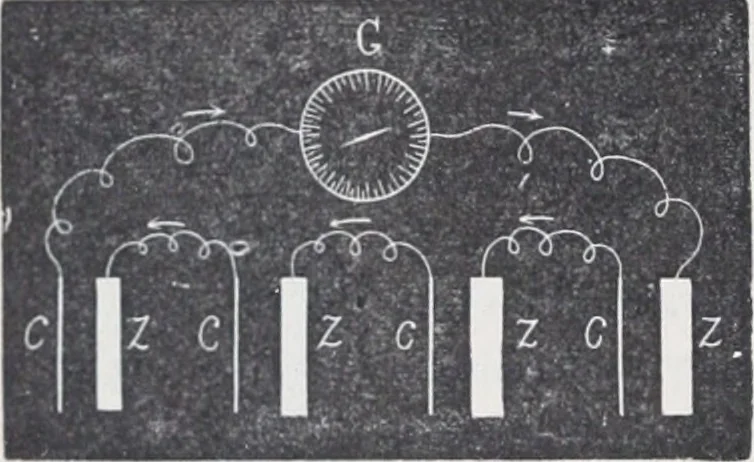

at the E.M.F. is exactly propoHional to the numberof cells connected in series. Cells so connected as to increasethe clectro-motive force are said to be joined in series or tandem.The method of connecting the cells for this purpose is shown inFigure 144. It will be seen that in the multiple arc… … ARRANGEMENT OF BATTERIES. 231 In the last example given above, let us see what would be theeffect of connecting the 10 cells in series. In this case E isincreaseel tenfold; and, as the current is pjg, 145^ obliged to pass through the liquid of 10cells instead of one. the internal resistancewill…
