Merchant, F. W. (Francis Walter), 1855-1937, Chant, Clarence Augustus, 1865-1956 · Toronto : Copp Clark · leaf 458

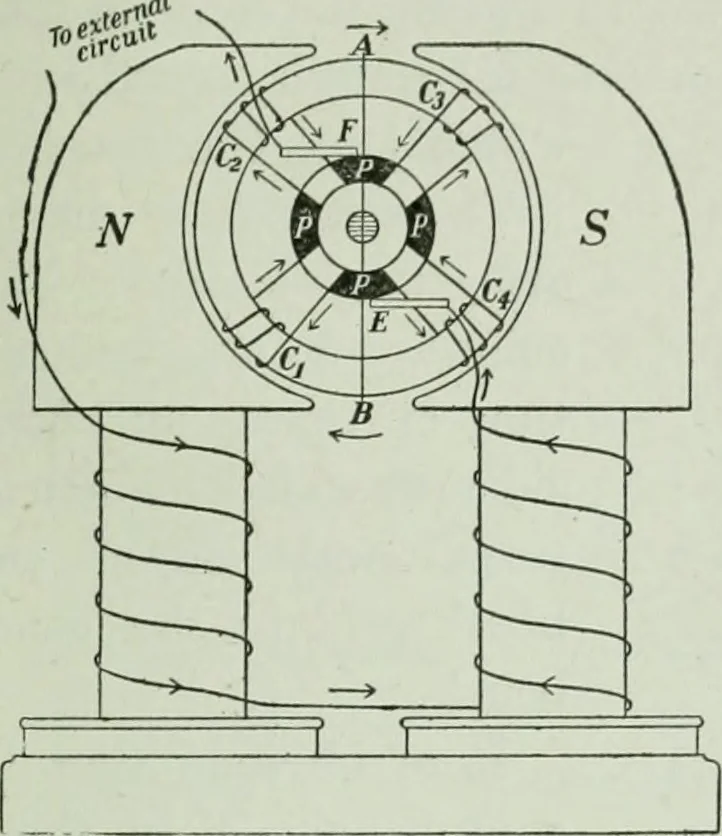

Fio. 540. Pio. 541. Arrang-ements for transforming the alternatiriifcurrent in the arinalure into a direct currentin the external circuit. DIRECT CURRENT DYNAMO 447 … Fia. 542.—Essential parts and electrical con-nections in the direct current dynamo. plates P, P,. . . . as indic^atel. I^oi- simplicity, suppose thatthe riug contains but four coils, (f^, 6^, Cj, 64, and that tiny aie in the typical positionsshown in the figure. Consider the conditions ofthe coils…
Physics
Internet Archive · Western University Libraries · Public Domain Mark 1.0. Free to use for anything.
