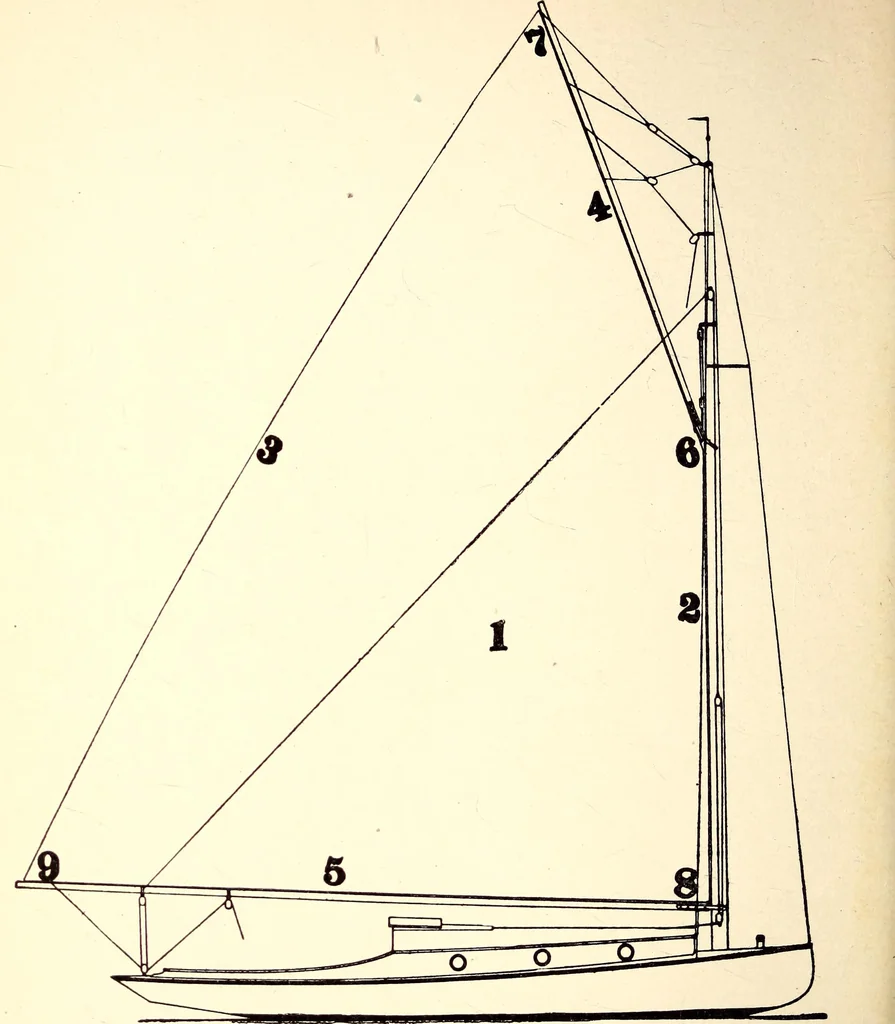

stern. 7— dead astern. 8— Jibed over to starboard tack. 9— Wind on the quarter. 10— abaft the beam. 11— abeam. 12— ■ forward of the beam. 13— Close-hauled on star- board tack. SPAR AND RIGGING PLAN OF CAT BOAT. 77 SPAR AND RIGGING PLAN OF CAT BOAT. 1— Hull. 2— Cabin house. 3— Main mast. 4— boom. 5—… … SAIL PLAN OF CAT BOAT. 79 SAIL PLAN OF CAT BOAT. 1— Mainsail. 2— luff. 3— leach. 4— head. 5— foot. 6— Mainsail throat. 7— peak. 8— tack. 9— clew.
