On yacht sailing; a simple treatise for beginners upon the art of handling small yachts and boats (1904)
Day, Thomas Fleming, 1861- [from old catalog] · New York and London, The Rudder publishing company · leaf 81

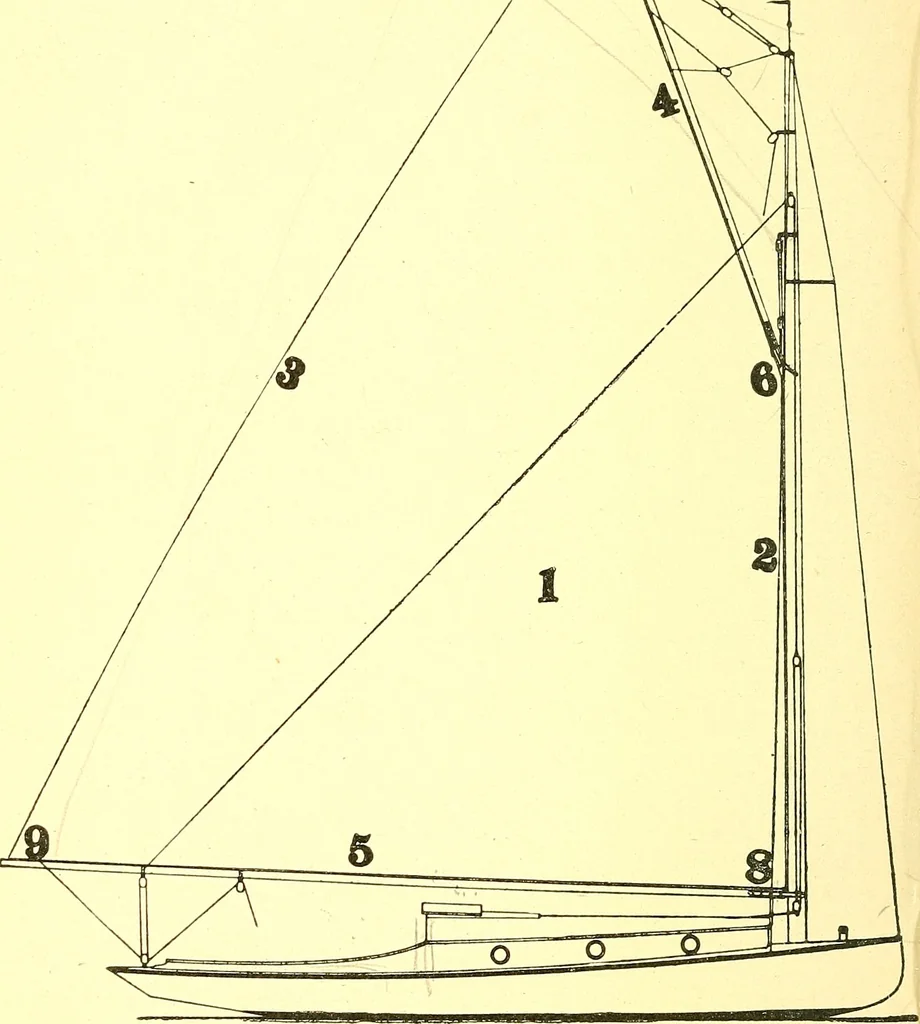

SPAR AND RIGGING PLAN OF CAT BOAT. 77 SPAR AND RIGGING PLAN OF GAT BOAT. I—Hull. 2—Cabin house. 3—Main mast. 4— boom. 5- gaff. 6—Companionway hatch.7—Main sheet.8—Topping lift.9—Lazy jacks. or lo—Peak halyards. 12— bridle. II—Throat 13—^Jaws of gaff. 15—Head stay. 16—Shroud. 17—Strut. 18—Bitts.… … SAIL PLAN or CAT BOAT. 79 SAIL PLAN OF CAT BOAT. I—Mainsail. 6—Mainsail throat, 2 luff. 7— peak. 3— leach. 8— tack. 4— head. 9— clewo 5- foot. L^. _fi^ ^ 8i SPAR AND RIGGING PLAN OF SLOOP. I—Freeboard. 2—Rail. 3—Mast. 4—Main boom. 5-Gaff. 6—Bowsprit. 7—Bobstay. 8—Strut. 9—Main sheet,lo—Peak…Sailing
