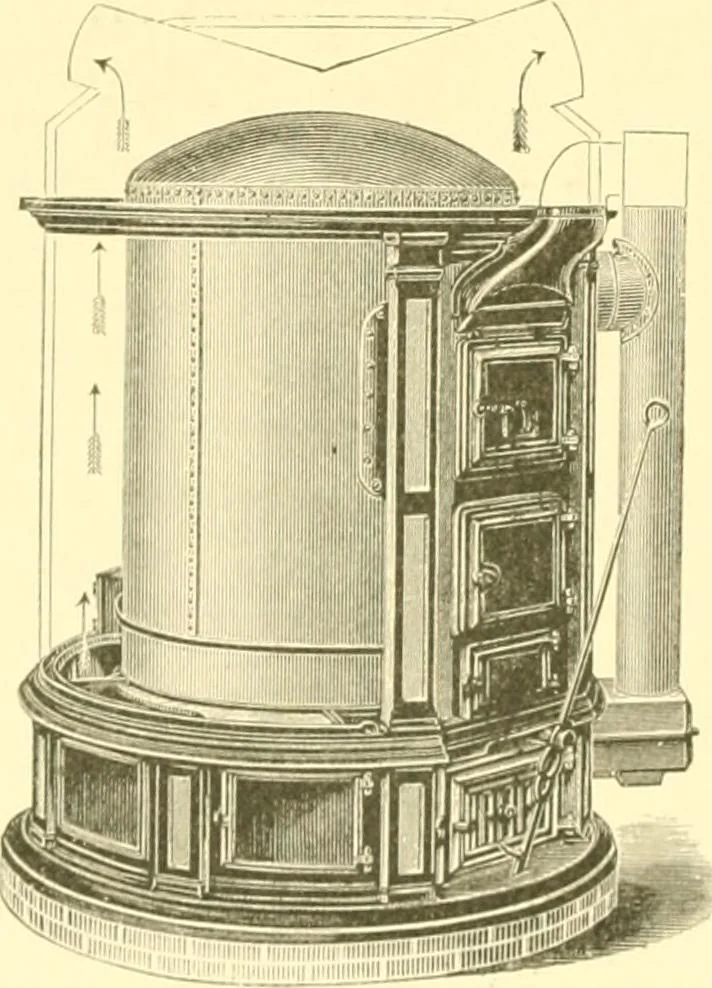

st, those having simple drums,like theMagee Furnace I Fig. L32), and.second, those having detached tubes, asin the Chilson (Fig. L34). The formerhas the advantage of simplicity and theminimum of joints for the escape of gas,and the latter of a greater radiatingsurface. In an ordinary furnace… … Fig. 132. Magees Furnace downward draughts THE OPEN FIREPLACE. 99 leakage may at once be detected b} the appearance of the fire, and curedby simply opening the direct smoke-draught, so that here freedom fromjoints, although important, is of less consequence than an increase of radi-ating surface.…
